GOT812W-511

SKU
GOT812W-511-C-DC
Lead time 21-30 days

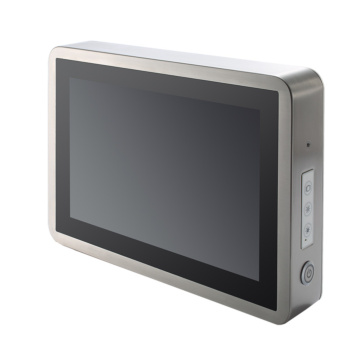

12.1" WXGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Core™ i5-7300U Processor and Flat Bezel Design (-20°C to +50°C)

  • 12.1" TFT flat bezel LCD display
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless steel enclosure with SUS 316
  • -20°C to +50°C wide operating temperature range
  • Fanless design with Intel® Core™ i5-7300U processor
  • Optional Wi-Fi/3G kit for wireless network connectivity
  • 9 to 36 VDC wide range power input
  • Supports VESA mount
  • M12 type connectors for harsh environments
Customize GOT812W-511
GOT812W-511-C-DC

* Required Fields

Your Customization
GOT812W-511
GOT812W-511

EUR0.00

Summary
    System
    Processor Intel® Core™ i5-7300U 2.6 GHz, up to 3.5 Ghz


    Memory 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
    Chipset SoC
    Storage 1 x 2.5" SATA HDD (9.5 mm height)
    Expansion 1 x Full-size PCI Express Mini Card slot
    1 x Half-size PCI Express Mini Card slot


    Display
    Screen Size 12.1" TFT LCD
    Screen Resolution 1280*800
    Display Ratio wide
    Contrast Ratio
    Brightness 400 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    I/O Ports
    USB 2.0 4x USB2.0
    USB 3.0
    Serial 2 x RS-232/422/485
    Video
    Ethernet 1 x RJ45 GbE (Intel® I210-IT; X-coded)
    Other Ports
    Operating System
    Operating System Windows 10
    Power
    DC Input / Source Voltage 9-36V DC
    Power Comsumption 56.5W
    Operating Temperature
    Operating Temperature -20ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 4.6 kg
    Dimensions 332 x 55 x 234 mm
    Enclosure
    Protection IP66 ALL sides
    Material Stainless Steel
    Mounting VESA / Suspension


    Certification
    Certification CE / FCC
    More Information
    CoolingFanless
    Display Size15.6"
    Touch typeProjected Capasitive (PCAP)
    CPU FamilyKaby Lake (7th 8th Gen Core i3/i5i7/Celeron)
