GOT821A-TGL-WCD
SKU
GOT821A-TGL-WCD
Lead time 21-30 days

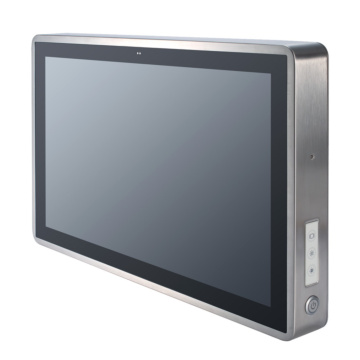

21.5" FHD TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer with Intel® Core™ i5-1145G7E Processor and Flat Bezel Design (-20°C to +50°C)
- 21.5" FHD TFT flat bezel LCD display
- IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
- Full stainless-steel enclosure with SUS 304
- 20°C to +50°C wide operating temperature range
- Fanless design with Intel® Core™ i5-1145G7E processor
- Wi-Fi kit for wireless network connectivity (optional)
- 12 to 24 VDC wide range power input
| System | |
| Processor | Intel® Core™ i5-1145G7E 2.6 Ghz |
| Memory | 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB |
| Chipset | SoC |
| Storage | 1 x 2.5" SATA HDD (9.5 mm height) |
| Expansion | 1 x M.2 Key E 2230 slot (with PCIe x1 and USB 2.0 supported) |
| Display | |
| Screen Size | 21.5" FHD TFT LCD |
| Screen Resolution | 1920*1080 |
| Display Ratio | wide |
| Contrast Ratio | |
| Brightness | 400 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 4x USB2.0 |
| USB 3.0 | |
| Serial | 2 x RS-232/422/485 |
| Video | |
| Ethernet | 1 x 2.5GBase-T Ethernet with Intel® I225 (X-coded) |
| Other Ports | |
| Operating System | |
| Operating System | Windows 10 /Windows 11 |
| Power | |
| DC Input / Source Voltage | 12-24V DC |
| Power Comsumption | 72W |
| Operating Temperature | |
| Operating Temperature | -20ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 9.0kg |
| Dimensions | 552.0 x 55 x 338.4 mm |
| Enclosure | |
| Protection | IP66 ALL sides |
| Material | Stainless Steel (SUS 304) |
| Mounting | VESA |
| Certification | |
| Certification | CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A |
| Cooling | Fanless |
|---|---|
| Display Size | 21.5" |
| Touch type | Projected Capasitive (PCAP) |
| CPU Family | Tiger Lake (11th Gen Core i3/i5/7) Mobile |
