GPOE-4P PoE PCIE Adapter
SKU
IEI_GPOE-4P
Lead time 14-22 days

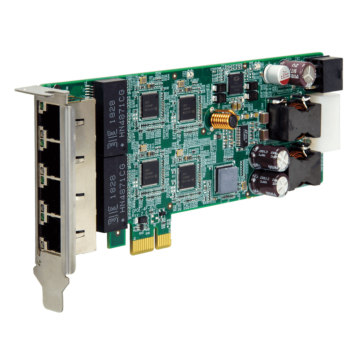

PCI Express Power over Ethernet card, 4-port 1000 Base(T), 802.3at/af compliant, low profile
-
PCI Express® x1 compliant
-
Support for total 90 watts under full load
-
Support link aggregation/jumbo frames (9 Kbyte)
-
Supports 12V~24V DC input power
| System | |
| Cooling method | Fanless |
| Physical Characteristics | |
| Dimensions (mm) | 130x65mm |
| Net Weight | 110g |
| I/O Interface | |
| Ethernet | Intel® I211-AT controller 9kB jumbo frame IEEE 802.3az, IEEE1588 |
| Power | |
| Input | 12~24V DC input 1 x Internal DC input (1x4 pin) 1 x Internal DC input (2x3 pin) **Caution! Choose one input only at a time |
| Environmental | |
| Operating Temperature | 0°C ~ 60°C |
| Card Slot Interface | |
| PCIe | PCI Express x1 |
| Manufacturer / Brand | IEI |
|---|---|
| Connection | 4x 1GBe LAN Ethernet IP |
| Data Interface | PCIEx1 |
