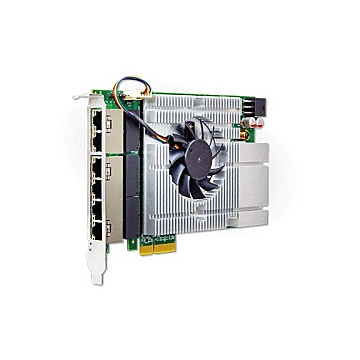

GPOE-6P PoE+ PCIE Adapter

SKU
IEI_GPOE-6P
Lead time 14-22 days

PCI Express Power over ethernet card, 6-port 1000 Base(T), 802.3at/bt compliant

  • Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
  • Total 180 Watts power budget with maximum 90 Watts per port
  • PoE power sourced from 12~24VDC of ATX power
  • Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
  • Supports SW/RDK (IEI GPOE Management Software Tools)
  • Compatible with x4, x8 and x16 PCIe slots
  • IEEE 802.3at/bt PoE compliant


System
Cooling method One 1x4pin fan
Physical Characteristics
Dimensions (mm) 169.44 mm x 106.65 mm
Net Weight 286g
I/O Interface
Ethernet Description: 6 x Intel® i211AT controller, 9kB jumbo frame
- PoE Capability -
IEEE 802.3at with 30W / 52V per port
IEEE 802.3bt with 90W / 52V per port
(Support for total 180 watts under full load)
Power
Input 12~24V DC input
1 x Internal DC input (2x3 pin)




Environmental
Operating Temperature 0°C ~ 60°C

Card Slot Interface
PCIe PCI Express x4
More Information
Manufacturer / BrandIEI
Connection6x 1GBe LAN Ethernet IP
Data InterfacePCIEx4
