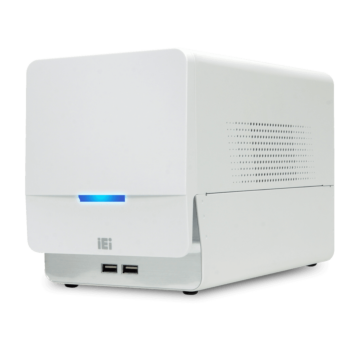

HTB-200-C236 Medical PC
SKU
HTB-200-C236
Lead time 21-30 days
● Compact small edge device with great computing & graphic performance
● 6th/7th Gen Intel® Xeon & Core™ processor platform with Intel® C236 chipset
● Dual SODIMM ECC & non-ECC unbuffered Memory supported up to 64GB
● PCIe [x16] slot supports for Nvidia GPU, IEI Mustang Acceleration Card
● PCIe [x4] slot supports for capture card or other application
| System | |
| Processor | Intel® Xeon E3-1268LV5,35W TDP Intel® Core i5-7500T ,35W TDP |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® C236 (Server Class) |
| Storage | 1x 2.5” SATA3 HDD/SSD Bay |
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 64 GB |
| Audio | Realtek ALC662, 5.1-channel High Definition Audio (HDA) Line-in, Line-out, Mic-in |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 2x USB 3.2 |
| Serial | 1 x RS-232/422/485 |
| Video | 1x HDMI (1.3a up to 1920*1200) |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | |
| Expansion | |
| Expansion Interface | 1x PCIe x16 (3.0) 1x PCIe x4 (3.0) 1x Half-size mPCIe slot |
| Operating System | |
| Operating System | Windows® 10, Linux |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 19 VDC 230V AC Adapter, Medical cert (180W) |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +35°C |
| Shock/Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 2.8 kg |
| Dimensions | 140 x 171 x 276.6 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel , Color White |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
