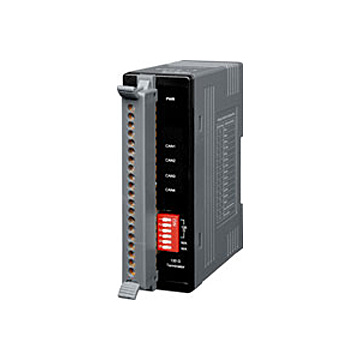

I-2534 4-port CAN bus Switch

SKU
I-2534
Lead time 8-16 days
Industrial 4-port CAN bus Switch
Details
*4 CAN communication ports
*Compatible with CAN specification 2.0A and 2.0B
*Fully compatible with the ISO 11898-2 standard
*Baud rate : 5 k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
*CAN bus filter is configurable
*100 data frames buffer for each CAN channel
*Max data flow up to 2500 fps for all CAN channel
*Selectable baud rate by rotary switch
*Selectable 120Ω terminator resistor by DIP switch
*LED for CAN status.
More Information
I/O CAN bus
Manufacturer ICP DAS
Connection RS-232
