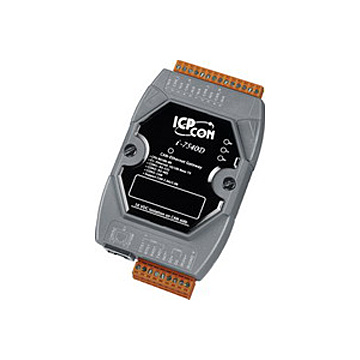

I-7540D CAN to Ethernet Gateway

Lead time 4-22 days
SKU
I-7540D-G_CR
CAN to Ethernet Gateway
Details
* 80186-80 Embedded CPU, or compatible
* Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
* 10/100 Base-TX Ethernet Controller
* Reloadable Operating Software
* Message transmitted by using TCP/IP protocol
* Diagnostics
* COM driver support interrupt & 1K QUEUE Input & Output buffer
* Support one RS-232 port, one RS-485 port and one CAN port
* 2500Vrms photo-isolation protection on CAN side.
* Jumper select 120Ω terminator resistor for CAN channel
* Phillip 82C 250/251CAN Transceiver
* Support both CAN specification 2.0A and 2.0B.
* Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
* Max transmission distance of CAN over 1000m (follow CAN specification)
* Built-in self-tuner ASIC controller on RS-485 port
* 7-segment LED display.
* Software configurable CAN and RS-232 communication parameters
* Firmware updated from COM1 or Ethernet port
* Support Web Configuration
* Support maximum 25 Ethernet clients connection
* Support for Virtual COM technology
More Information
I/O CAN bus
Manufacturer ICP DAS
Connection Ethernet IP
