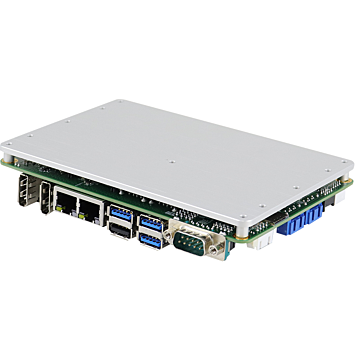

IB953
SKU
IB953-xx
Lead time 21-30 days
- Onboard 11th Gen Intel® Core™i7/i5/i3/ Celeron® processor
- 2x DDR4-3200 SO-DIMM, Max.64GB
- Supports 2x DisplayPort, eDP and 24-bit dual-channel LVDS
- 2x Intel® PCI-E GbE LAN
- 3x USB 2.0, 3x USB 3.1, 2x SATA III
- 3x M.2 sockets (B-Key/ E-Key and M-Key)
- Watchdog timer, Digital I/O, TPM (2.0), 5G compatible
| Form Factor | |
| Form Factor | 3.5” Embedded SBC |
| System | |
| Processor | 11th Gen Intel® Core™ i7-1185G7E 11th Gen Intel® Core™ i5-1145G7E 11th Gen Intel® Core™ i3-1115G4E Intel® Celeron® 6305E |
| Integrated Graphics | Intel® Gen 12 Graphics |
| Security Hardware | |
| Chipset | |
| Storage | 1x M.2 (M-Key) 2x SATA III |
| Storage Support | |
| Memory | 2 x 260-pin SO-DIMM DDR4 max 64GB |
| I/O Ports | |
| USB 2.0 | 3 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 3 x USB3.1 |
| Serial | 2 xRS-232/422/485 |
| Video | 2 x DisplayPort eDP LVDS 24-bit dual-channel |
| Ethernet | 2 x 10/100/1000 Mbps |
| Other Ports | 1 Audio , w/Amplifier DIO |
| Expansion | |
| Expansion Interface | 1x M.2 (M-Key, Type:2280, Support NVMe) 1x M.2 (E-Key, Type:2230, Support CNVi) 1x M.2 (B-Key, Type:3052, Support 5G) |
| Operating System | |
| Operating System | WIN10 |
| Power | |
| DC Input / Source Voltage | 12V – 24V DC input |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 102 x 147 mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | iBASE |
|---|---|
| Form Factor | 3.5" Embedded |
