ICO100-839

SKU
ICO100-839-N3350-DC
In Stock
EUR458.80

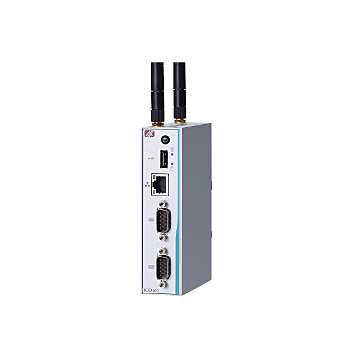

Robust DIN-rail Fanless Embedded System with Intel® Celeron N3350 Processor, 2 COM, 1 LAN, 2 USB and 1 DIO
Ominaisuudet
* Extreme cost-effective with fanless and cableless design
* Intel® Celeron™ N3350 processor
* 2 COM, 2 USB, 1 GbE LAN
* 8-bit programmable DIO for IoT gateway applications
* Wide operating temperature range from -20°C to +70°C
* 12-24 VDC wide range power input
* OVP, UVP, OCP, RPP power protection design
* AXView 2.0 intelligent embedded monitoring software for IoT
Pakkaus sisältää
ICO100-839
*4GB RAM
Spesifikaatiot
System
Processor Intel® Celeron® N3350 2C @1.1 GHz
CPU Performance
Security Hardware
Chipset SoC
Storage 1 x mSATA
Storage Support
Memory 1 x 204-pin SO-DIMM DDR3L up to 8 GB
Graphics 1 x VGA
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0
Serial 2 x RS-232/422/485
Video 1 x VGA
Ethernet 2x GbE LAN ports
Other Ports 1 x DI/DO (8-bit programmable, DB9 female connector)
Expansion
Expansion Interface 2 x PCI Express Mini Card
1 x SIM socket
Operating System
Operating System Windows® 10 IoT, Linux support package
Power
DC Input / Source Voltage 12-24V DC Input in system
(optional 230V AC adapter)
Operating Temperature
Operating Temperature Operating Temperature -20°C to 70°C, with Wide-Temp SSD
Humidity Range 10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg)
Dimensions 31 mm (W) x 100 mm (D) x 125 mm (H)
Enclosure
Bezel
Material Aluminum / Steel
Mounting Desk/Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE
More Information
Cooling Fanless
