ICO150-x7433
SKU
ICO150-x7433
Lead time 21-30 days

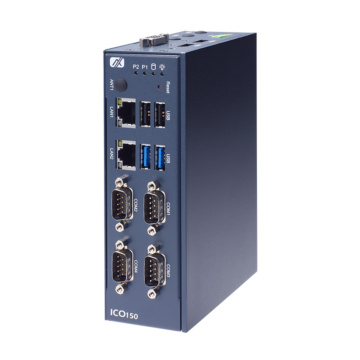

DIN-Rail Fanless Embedded System with Intel Atom® Processor x7433RE, 4 COM, 2 2.5GbE LAN, 4 USB, HDMI, DIO, and Wide Temperature
- Intel Atom® processor x7433RE

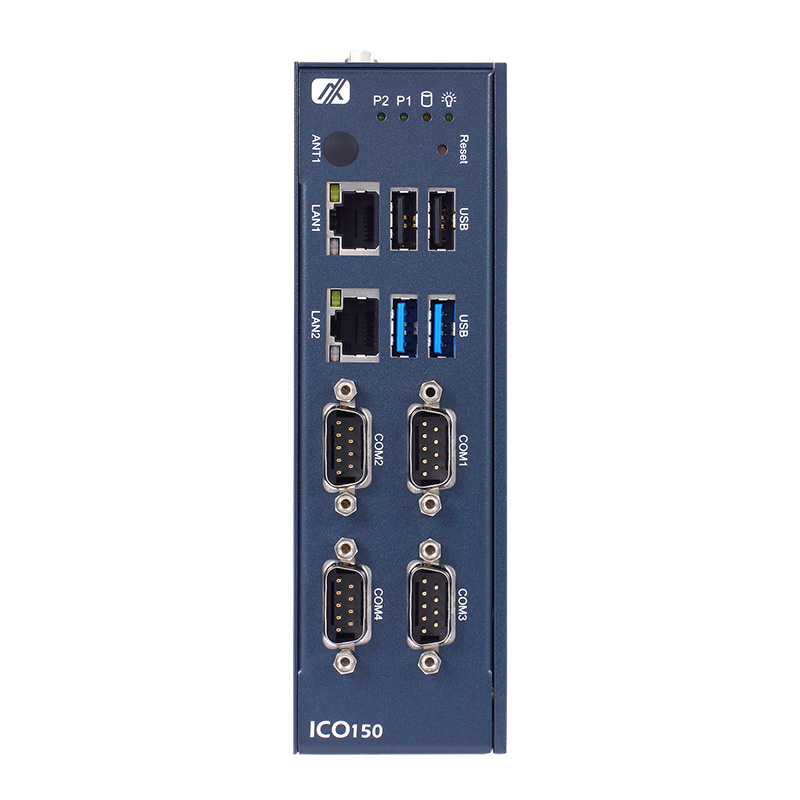

- 4 COM, 4 USB, 2 2.5GbE LAN, HDMI, and DIO
- 9 to 36 VDC wide range power input (typical: 12 to 24 VDC)
- OVP, UVP, OCP, and RPP power protection design
- Axiomtek EAPI for intelligent remote monitoring software integration
| System | |
| Processor | Intel Atom® x7433RE processor, 1.5 GHz/4C/9W |
| Security Hardware | TPM2.0 |
| Chipset | SoC integrated |
| Storage | 1 x half-size PCI Express Mini Card slot for mSATA
(SATA or Wi-Fi selection) 1 x M.2 B+M key 2242 for NVMe |
| Memory | 1 x DDR5-5600 SO-DIMM, up to 16 GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 2x USB3.2 |
| Serial | 4 x COM (RS-232/422/485) |

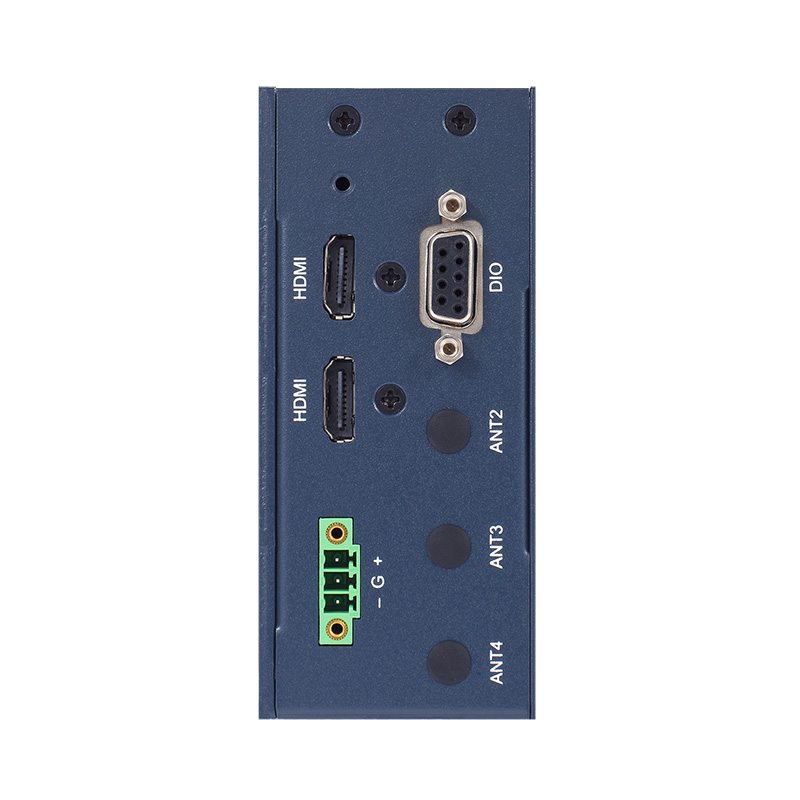

| Video | 1 x HDMI (1.4b, 4K); (2nd HDMI w/ FHD by option) |
| Ethernet | 2 x RJ-45 2.5GbE LAN (Intel® I226-IT; TSN supported) |
| Other Ports | DIO Others 1 x DIO (8-bit programmable DIO) |
| Expansion | |
| Expansion Interface | 1 x full-size PCI Express Mini Card slot (USB signal)
with SIM slot for 4G-LTE module 1 x half-size PCI Express Mini Card slot with SATA or PCIe signal (mini mSATA or Wi-Fi) 1 x M.2 B+M key 2242 with PCIe signal (for NVMe) |
| Operating System | |
| Operating System | Windows® 11 IoT, Ubuntu 22.04 |
| Power | |
| DC Input / Source Voltage | 1 x terminal block, 9 to 36 VDC, typical 12/24V |
| Operating Temperature | |
| Operating Temperature | AW: - 40°C to +70°C (Wide-Temp) AC: 0°C to +50°C (Normal Temp) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Vibration | 3 Grms, 5 to 500Hz, X/Y/Z direction; random, operating |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | AW: 65 x 110 x 155 mm (Wide-Temp) AC: 48 x 110 x 155 mm (Normal Temp) |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Din-rail , Wall Mounting |
| Certification | |
| Certification | CE (EN 55032/EN 55024) FCC (FCC Part 15B) UL |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
