ICO310

SKU
ICO310-N3060-PD-DC
Lead time 21-30 days

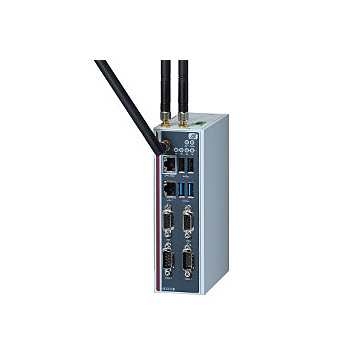

Robust Din-rail Fanless Embedded System with Intel Celeron Processor N3060, 2 COM, 4 USB, 2 Gigabit LAN (1 PoE PD), DIO and RTC
Details
* Supports Intel® Celeron® processor N3060 (1.6 GHz/2-core)
* 2 RS-232/422/485 ports
* 4 USB ports
* 2 isolated 10/100/1000Mbps Ethernet ports
* 1 PoE PD is compliant with IEEE 802.3at standard through LAN 1
* 1 DIO port
* 2 wireless (3G/GPRS & Wi-Fi)
* Supports 1 mSATA & SATA SSD (or HDD)
* Wide range 12-24V DC-In
Package includes
ICO310-N3060-PD-DC
*Intel Celeron N3060 cpu
Specifications
System
Processor Intel® Celeron N3060 1.6Ghz 2-core
CPU Performance
Security Hardware
Chipset SoC
Storage 1 x 2.5" SATA HDD drive bay
1 x mSATA
Storage Support
Memory 1 x 204-pin SO-DIMM DDR3L up to 8 GB
Graphics 1 x VGA
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0 2 x USB 3.0
Serial 2 x RS-232/422/485
Video 1 x VGA
Ethernet 2 x 10/100/1000 Mbs(Intel® i211-AT) (1 x PoE PD)
Other Ports 1 x DIO
Expansion
Expansion Interface 2 x PCI Express Mini Card
1 x SIM socket
Operating System
Operating System Windows® 10 IoT, Linux support package
Power
DC Input / Source Voltage 12-24V DC Input in system
(optional 230V AC adapter)
Operating Temperature
Operating Temperature Operating Temperature -20°C to 70°C, with Wide-Temp SSD
Humidity Range 10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 1.0kg
Dimensions 48 mm (W) x 110 mm (D) x 155 mm (H)
Enclosure
Bezel
Material Aluminum / Steel
Mounting Desk/Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE
