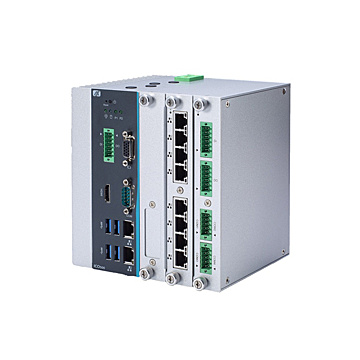

ICO500-518-i3

SKU
ICO500-518-i3
Lead time 21-30 days
Fanless embedded system with Intel i3 2.4 GHz cpu, 4x USB3.0, 2x RJ-45 LAN, COM, DIO (4-in/4-out), HDMI, VGA
Details
* 7th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Kaby Lake-U)
* 2 PIM (Plug-in I/O Module) slots
* Fanless and compact design
* Wide operating temperature range from -40°C to +70°C
* 12 to 48 VDC wide range power input
* OVP, UVP, OCP, RPP power protection design
* 1 swappable 2.5" SATA drive tray
Specifications
System
Processor Intel® Core™ i3-7100U 2C @ 2.4 Ghz
CPU Performance
Security Hardware
Chipset SoC integrated
Storage 2 x 2.5" HDD drive bay
1 x mSATA
Storage Support
Memory 1 x DDR4-1866/2133 SO-DIMM, up to 16GB
Memory (RAM)
I/O Ports
USB 2.0 -
USB 3.0 4x USB 3.0
Serial 1x RS-232/422/485
Display 1 x VGA
Ethernet 2 x GbE LAN
Other Ports 1 x Isolated DIO (4-in/4-out)
Operating System
Operating System Windows 10 Pro, Windows 10 IoT, Linux
Power
DC Input / Source Voltage 12 to 48 VDC, OVP, UVP, OCP, RPP power protection design
Power Management
Expansion Slots
Expansion 2 x Full-size PCI Express Mini Card slot
1 x External SIM card slot
2 x PIM slot


Operating Temperature
Operating Temperature -40°C to +70°C
-40°C to +60°C with PIM200
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 4.4 kg
Dimensions 145 x125 x155 mm
Enclosure
Bezel
Material Aluminum
Mounting DIN-rail (standard)
Wall mount (optional)
Vibration 3 Grms with SSD, DIN-rail/wall mounting (5 to 500Hz, X/Y/Z direction; random)
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
