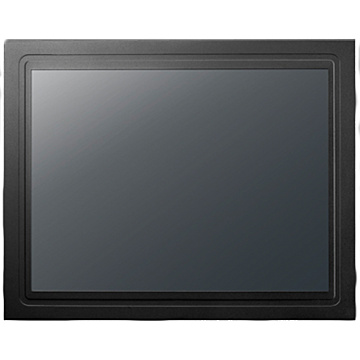

IDS-3212
SKU
IDS-3212-xxx
Lead time 21-30 days
- 12.1" SVGA / XGA LCD panel with LED backlight for 20% power savings, and environmental protection
- -20° C ~ +60° C wide range operating temperature
- 5-wire resistive touch screen solution or 3mm tempered smudge resistant protected glass
- Combo touch interface, both RS-232 and USB
- Dual signal interface with VGA & DVI
- Standard integrated frame
- Versatile mounting method for rear mounting and VESA mounting
| Display | |
| Screen Size | 12" TFT LCD |
| Screen Resolution | 1024x768 XGA |
| Display Ratio | 4 ::3 |
| Contrast Ratio | 700 ::1 |
| Brightness | 600 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Protective Glass / 5-wire Resistive/ PCAP |
| I/O Ports | |
| Video | 1x VGA, 1x DVI |
| Other Ports | |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 12V DC 230V AC with adapter |
| Power Management | |
| Multimedia | |
| Integrated Speakers | |
| Operating Temperature | |
| Operating Temperature | -20ºC to 60ºC |
| Humidity Range | 5% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 2.5 kg |
| Dimensions | 323.7 x 262.4 x 36.5mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum |
| Mounting | Panel /VESA |
| Note * | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
| Display Size | 12.1" |
|---|---|
| Signal input | VGA, DVI-D |
