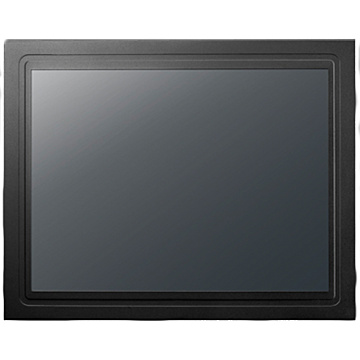

IDS-3215

SKU
IDS-3215-xxx
Lead time 21-30 days
  • 15" XGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20° ~ +60° C wide range operating temperature
  • 5-wire resistive touchscreen solution or tempered smudge resistant protected glass
  • Combo touch interface: RS-232 and USB
  • Dual signal interface with VGA & DVI
  • Standard integrated frame
  • Versatile mounting methods for rear mounting and VESA mounting
Display
Screen Size 15" TFT LCD
Screen Resolution 1024x768 XGA
Display Ratio 4 ::3
Contrast Ratio 2500 ::1
Brightness 500 nits
Viewing Angle
Number of Colors
Touch Screen
Touchscreen Protective Glass / 5-wire Resistive/ PCAP
I/O Ports
Video 1x VGA, 1x DVI
Other Ports
Operating System
Operating System Windows 10
Power
DC Input / Source Voltage 12V DC
230V AC with adapter
Power Management
Multimedia
Integrated Speakers
Operating Temperature
Operating Temperature -20ºC to 60ºC
Humidity Range 5% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 4.5 kg
Dimensions 365 x 291 x 38mm
Enclosure
Bezel
Material Aluminum
Mounting Panel /VESA
Note *
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
More Information
Display Size15"
Signal inputVGA, DVI-D
