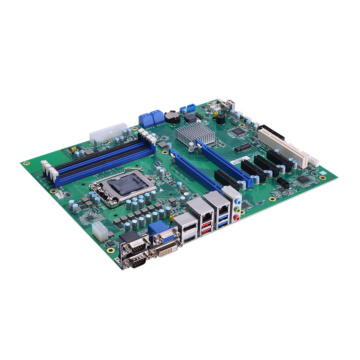

IMB530-S
SKU
E38F530101
In Stock
EUR452.60 EUR365.00
ATX Motherboard with LGA1200 Socket 10th Gen Intel® Core™ i9/i7/i5/i3, Xeon® E Processor, Intel® W480E, ECC DDR4, USB 3.2 Gen2, NVMe, Dual LAN, VGA, DisplayPort++, DVI-D, and HDMI
- LGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (Comet Lake and Rocket Lake)
- Four 288-pin DDR4-2933 (CML)/3200 (RKL) ECC/non-ECC un-buffered Long-DIMM, up to 128GB
- DisplayPort++, VGA, DVI-D and HDMI with triple-view supported
- Supports M.2 Key M 2280
- 2 USB 3.2 Gen2 and 4 USB 3.2 Gen1
- TPM 2.0 supported (optional)
| Form Factor | |
| Form Factor | ATX |
| System | |
| Processor | LGA1200 socket 10th gen Intel® Core™ i9/i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (up to 125W) |
| Integrated Graphics | Yes |
| Security Hardware | |
| Chipset | Intel® W480E |
| Storage | 4 x SATA-600 with RAID 0/1/5/10 |
| Storage Support | |
| Memory | 4 x 288-pin DDR4-2933 ECC/non-ECC DIMM, up to 128GB |
| Graphics | Intel HD graphics Integrated |
| I/O Ports | |
| USB 2.0 | 6 x USB 2.0 |
| USB 3.2 | 2 x USB3.2 Gen2 2 x USB3.2 Gen1 2 x USB3.2 Gen1 (internal, box header) |
| Serial | 2 x RS-232 (Internal box header) 2 x RS-232/422/485 |
| Display | 1 x VGA 1 x DVI-D 1 x HDMI 1 x DisplayPort++ |
| Ethernet | 2 x 10/100/1000 Mbps (Intel® i211-AT & Intel® i219-LM) |
| Other Ports | DIO MIC-in/Line-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 slot (signal x16 or x8) 1x PCIe x16 slot (signal x0 or x8) 3 x PCIe x4 slot 1 x PCIe x4 slot (signal x1) 1 x PCI slot |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 305 x 244 mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | LGA 1200 |
| Form Factor | ATX |
