IMB523
SKU
IMB532
Lead time 21-30 days

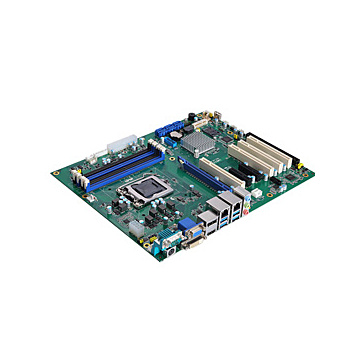

ATX Industrial Motherboard with LGA1151 Socket 8th Gen Intel® Core Processor, Intel® Q370, USB 3.1 (Gen2), SATA 3.0, Dual LANs, and VGA/DP/DVI-D/HDMI
Details
* LGA1151 socket 8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake)
* Four 288-pin DDR4-2666/2400 DIMM, up to 64GB
* DP, DVI-D, HDMI and VGA with triple-view supported
* 6 SATA-600 RAID 0/1/5/10
* Two USB 3.1 (Gen2) and four USB 3.1 (Gen1)
* PCI Express Mini Card slot
* Four 288-pin DDR4-2666/2400 DIMM, up to 64GB
* DP, DVI-D, HDMI and VGA with triple-view supported
* 6 SATA-600 RAID 0/1/5/10
* Two USB 3.1 (Gen2) and four USB 3.1 (Gen1)
* PCI Express Mini Card slot
Specifications
| Form Factor | |
| Form Factor | ATX |
| System | |
| Processor | LGA1151 socket 8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor |
| Integrated Graphics | Yes |
| Security Hardware | |
| Chipset | Intel® Q370 |
| Storage | 4 x SATA-600 with RAID 0/1/5/10 |
| Storage Support | |
| Memory | 4 x 288-pin DDR4-2666/2400 DIMM, up to 64GB |
| Graphics | Intel HD graphics Integrated |
| I/O Ports | |
| USB 2.0 | 7 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 6 x USB 3.1 |
| Serial | 4 x RS-232 (Internal box header) 2 x RS-232/422/485 |
| Video | 1 x VGA 1 x DVI-D 1 x HDMI 1 x DisplayPort |
| Ethernet | 1x 10/100/1000 Mbps (Intel® i219-LM, iAMT) 1 x 10/100/1000 Mbps (Intel® i211-AT) |
| Other Ports | DIO MIC-in/Line-in/Line-out 1 x PS/2 keyboard and mouse |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 slot 2 x PCIe x4 slot 4 x PCI slot |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 90%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 305 x 244 mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | LGA 1151 |
| Form Factor | ATX |
