IMB542
SKU
IMB542
Lead time 21-30 days

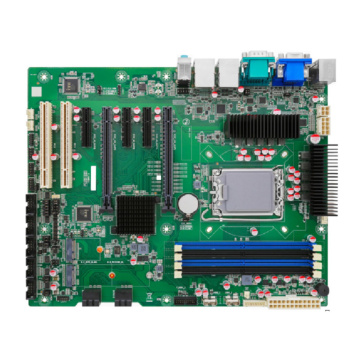

ATX Motherboard with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® Q670, USB 3.2 Gen 1x1, SATA 3.0, GbE, VGA, DVI-D, and HDMI
- LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
- Four 288-pin DDR5-4400 non-ECC Long-DIMM, up to 192GB
- Supports triple-view with VGA, DVI-D, and HDMI interfaces
- Supports M.2 Key M 2280 and Key E 2230
- 6 USB 3.2 Gen 1x1 and 2 USB 3.2 Gen 1x1 (internal)
- TPM 2.0 supported (optional)
| Form Factor | |
| Form Factor | Industrial ATX |
| System | |
| Processor | LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W) |
| Security Hardware | Not included by default; supports Intel® PTT as default |
| Chipset | Intel® Q670 |
| Storage | M.2 Key M 2280 with support for PCIe x4 via CPU 4 x SATA-600 with RAID 0/1/5/10 |
| Memory | 4 x 288-pin DDR5-4400 non-ECC Long-DIMM, up to 192GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 5 x USB 2.0 (internal) |
| USB 3.2 | 6 x USB 3.2 Gen 1x1 (5G) 2 x USB 3.2 Gen 1x1 (5G) (internal box header) |
| 2 x Dual USB 3.2 Gen 1x1 (5G) (internal, box header) | |
| Serial | 1 x RS-232 (rear I/O) 3 x RS-232 (internal box header) 1 x RS-232/422/485 (internal box header) 1 x RS-232/485 (internal box header) |
| Video | 1 x VGA, up to 1920 x 1200 @ 60Hz 1 x HDMI 2.0, up to 4096 x 2160 @ 60Hz 1 x DVI-D, up to 1920 × 1200 @ 60Hz |
| Ethernet | 1 x 10/100/1000 Mbps (Intel® I210-AT) 1 x 10/100/1000 Mbps (Intel® I219-V) |
| Other Ports | DIO 8-channel programmable HD Codec audio as MIC-in/Line-in/Line-out 1 x PS/2 keyboard (rear I/O) |
| Expansion | |
| Expansion Interface | 2 x PCIe x16 slot (signal: PCIe Gen4 x16 + PCIe Gen3
x4) 3 x Open-ended PCIe Gen4 x4 slot 1 x M.2 Key E 2230 (supports PCIe x1 + USB 2.0) 2 x 32-bit PCI slot; default clock is 33 MHz |
| Operating System | |
| Operating System | Windows 11, Linux |
| Power | |
| Power Input | Standard ATX power |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 1kg |
| Dimensions | 305mm x 244mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | LGA1700 |
| Form Factor | ATX |
