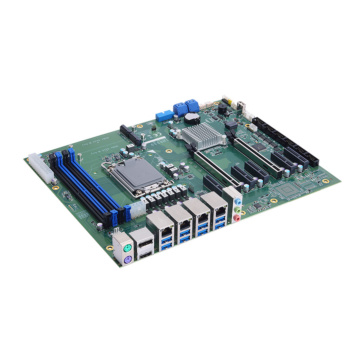

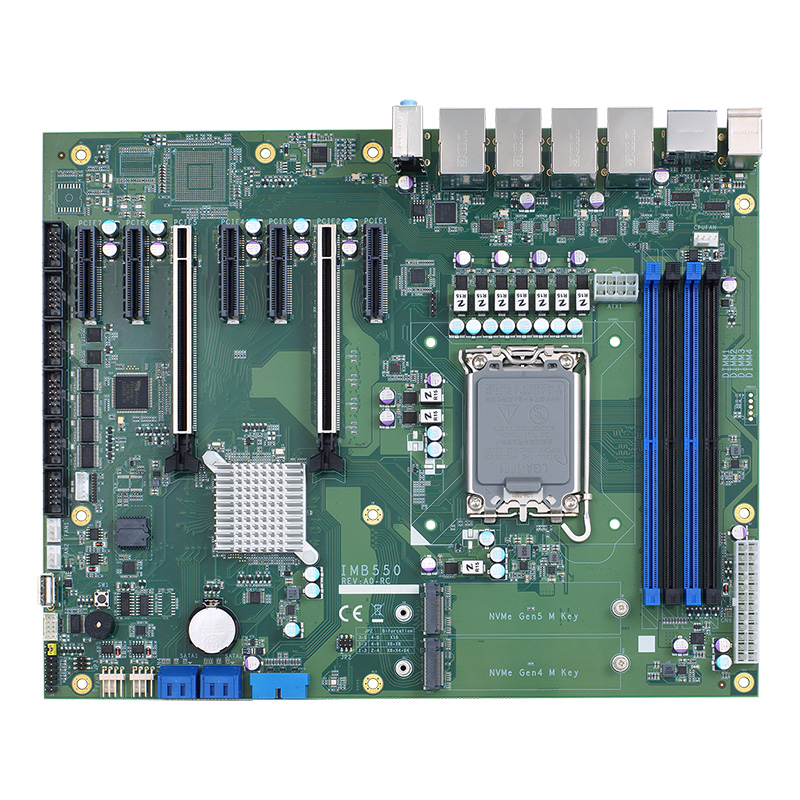

IMB550-ARL-W880
SKU
IMB550-ARL-W880
Lead time 21-30 days
ATX Motherboard with LGA1851 Socket 15th Gen Intel® Core™ Ultra 9/7/5 Processors, Intel® W880, USB 3.2 Gen 2, SATA 3.0, 2.5GbE LAN, DisplayPort++, and HDMI
- LGA1851 socket 15th Gen Intel® Core™ Ultra 9/7/5 processors (Arrow Lake-S)
- Four 288-pin DDR5-4400 ECC/non-ECC unbuffered Long-DIMM, up to 192GB
- Supports DisplayPort++ and HDMI
- Supports 2 M.2 Key M 2280
- Supports 2 PCIe x16 slots with PCIe Gen 5 for GPU cards
- Supports IPMI 2.0
- Optimized CPU socket layout design for airflow of the rackmount system
| Form Factor | |
| Form Factor | Industrial ATX |
| System | |
| Processor | LGA1851 socket 15th Gen Intel® Core™ Ultra 9/7/5 processors, up to 125W (Arrow Lake-S) |
| Security Hardware | TPM2.0 IPMI 2.0 supported by OpenBMC |
| Chipset | Intel® W880 |
| Storage | 4 x SATA-600 with RAID 0/1/5/10 2 x M.2 key M 2280 in support of PCIe x4 via CPU with RAID 0/1 |
| Memory | 4 x 288-pin DDR5-4400 ECC/non-ECC un-buffered Long-DIMM, up to 192GB (ECC memory available only for Intel® W880) |
| Graphics | Intel® Xe LPG Graphics |
| I/O Ports | |
| USB 2.0 | 1 x USB 2.0 (internal) |

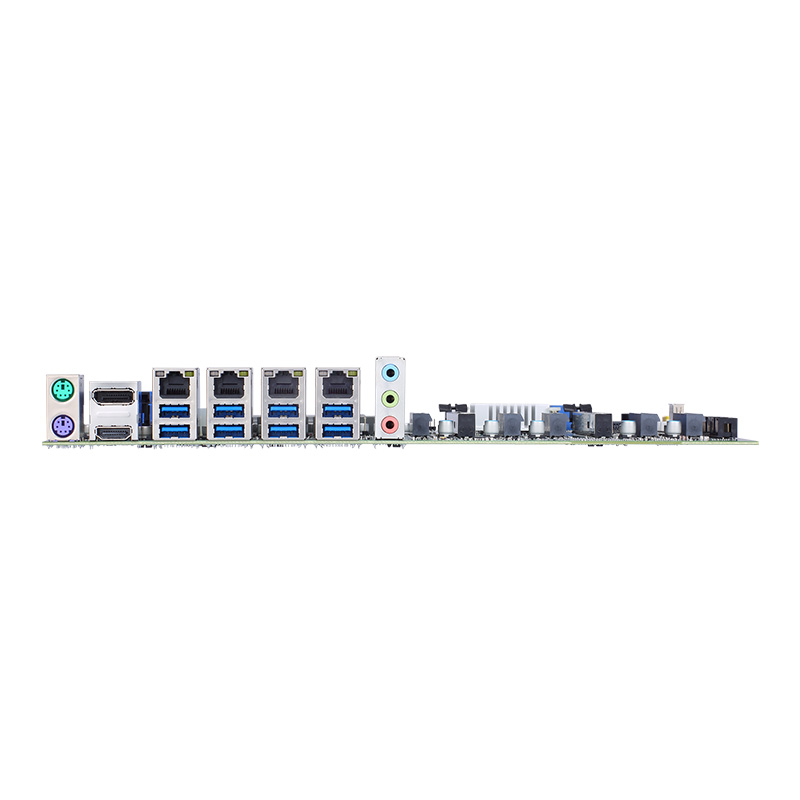

| USB 3.2 | 4 x USB 3.2 Gen 2x1 (10G) & 4 x USB 3.2 Gen 1x1 (5G) (rear I/O) |
| 2 x Dual USB 3.2 Gen 1x1 (5G) (internal, box header) | |
| Serial | 2 x RS-232 (internal box header) 2 x RS-232/422/485 (internal box header) |
| Video | 1 x HDMI 1.4b, up to 4096 x 2160 @ 24Hz 1 x Displayport++ (DP 1.2), up to 4096 x 2304 @ 60Hz |
| Ethernet | 1 x 10/100/1000 Mbps (Intel® I219-LM, Intel® AMT
with Intel vPro®) 2 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-V) 1 x 10/100/1000Mbps IPMI LNA (Intel® I210-AT shared with AST2600) (optional) |
| Other Ports | DIO 8-channel programmable MIC-in/Line-in/Line-out 1 x PS/2 keyboard (rear I/O) 1 x PS/2 mouse (rear I/O) |
| Expansion | |
| Expansion Interface | 2 x PCIe Gen 5 x16 slots (signal: PCIe x16 + PCIe x0
or PCIe x8 + PCIe x8) 5 x PCIe x4 slot open ended 3 x PCIe x4 signal, slot 3 & 6 PCIe x2 signal (signal by PCH) |
| Operating System | |
| Operating System | Windows 11, Linux |
| Power | |
| Power Input | Standard ATX power |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 1kg |
| Dimensions | 305mm x 244mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Form Factor | ATX |
