iNA200
SKU
iNA200
Lead time 21-30 days

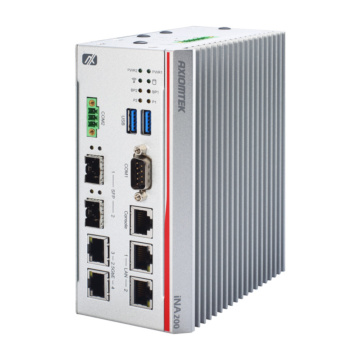

DIN-rail cybersecurity gateway with Intel Atom® x6212RE/x6414RE processor and up to 6 LAN
- Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
- DDR4-3200 SO-DIMM, up to 32GB
- 2 GbE LAN, 2 2.5GbE LAN, and 2 SFP
- Wide operating temperature from -40°C to 70°C
- Wide power input of 9 to 36 VDC with redundant backup input
- Supports 5G with M.2 Key B 3042/3052
- Supports TPM 2.0
- Ideal for OT field site cybersecurity and secured edge
| System | |
| Processor | Intel Atom® x6212RE/x6414RE processor (Elkhart Lake) |
| Security Hardware | TPM2.0 |
| Chipset | SoC integrated |
| Storage | 1 x 2.5" SATA 3.0 SSD 1 x 16GB eMMC onboard |
| Memory | 1 x SO-DIMM DDR4, up to 32GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 2x USB 3.0 |
| Serial | 1 x RS-232/422/485 (DB9) 1 x RS-485 (terminal block) |
| Video | 1 x HDMI |
| Ethernet | 2 x 10/100/1000 Mbps (Marvell 88E1512) with LAN
Bypass 2 x 2.5G (Intel® I225-IT) with LAN Bypass and TSN function 2 x 1G SFP (Intel® I210-IS) |
| Other Ports | 1 x Console port (RJ-45) |
| Expansion | |
| Expansion Interface | 1 x M.2 key B 3042/3052 slot (PCIe + USB interface) 1 x Full-size PCIe Mini Card slot (USB + SATA interface) |
| Operating System | |
| Operating System | Windows® 10 / LINUX |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~36VDC (typical 12/24V) with 2 terminal blocks for redundant backup input |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD |
| Humidity Range | 0% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.5 kg |
| Dimensions | 88 x 127 x 150mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Din-rail |
| Certification | |
| Certification | CE, FCC |
