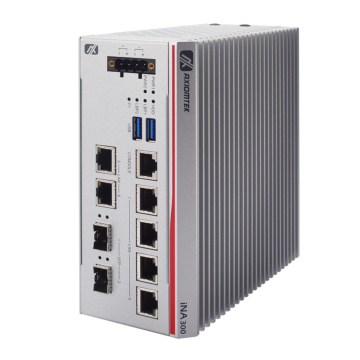

iNA300
SKU
iNA300
Lead time 21-30 days
DIN-rail Cybersecurity Gateway with Intel Atom® x7433RE Processor and up to 8 LAN
- Intel Atom® x7433RE processor (Amston Lake)
- DDR5-4800 SO-DIMM, up to 16GB
- Support 6 2.5GbE and 2 1GbE SFP
- Wide operating temperature from -40°C to +60°C, IP30
- Wide power input of 12 to 48V DC with dual power input
- Supports TPM 2.0
- Certified IEC 61850-3 & IEEE 1613 for power utility
| System | |
| Processor | Intel Atom® x7433RE processor (Amston Lake) |
| Security Hardware | TPM2.0 |
| Chipset | SoC integrated |
| Storage | 1 x 2.5" SATA 3.0 SSD |
| Memory | DDR5-4800 SO-DIMM, up to 16GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 2x USB 3.2 |
| Serial | - |
| Video | 1 x HDMI |
| Ethernet | 6 x 2.5G (Intel® I226-IT) with 2-pairs LAN bypass 2 x 1G SFP (Intel® I210-IS) |
| Other Ports | 1x console port (RJ-45) |
| Expansion | |
| Expansion Interface | 1 x full-size PCI Express Mini Card slot with SIM slot (USB interface) |
| Operating System | |
| Operating System | Windows® 11 / LINUX |
| Power | |
| DC Input / Source Voltage | 12 to 48 VDC (typical 12/24V) with terminal block for dual power input OVP, UVP, OCP, and RPP power protection design |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +60°C with Normal SSD -40°C ~ +60°C with W.T. SSD |
| Humidity Range | 0% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.6 kg |
| Dimensions | 71 x 150 x 165 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Din-rail , Wall Mounting |
| Certification | |
| Certification | CE (Class A), FCC (Class A), UKCA, IEC 61850-3, and IEEE 1613 |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
| Operating Temp | Wide Temp -40..60C |
