IPC-802

SKU
IPC-802
In Stock

EUR930.00 EUR750.00

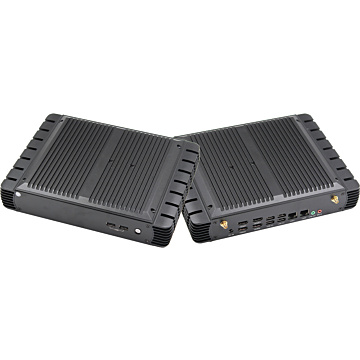

Fanless Embedded System, 2.4Ghz Intel Core i5-1135G7 cpu, 4xHDMI, 2xGBe LAN, 6xUSB

  • 11th Gen Intel Tiger Lake-U Processors (i5-1135G7)
  • Dual channel SO-DIMM DDR4 Up to 64 GB
  • Intel Iris Xe Graphics via HDMI2.0
  • 4x HDMI, Multi monitor support
  • 2xUSB3.2, 4xUSB2.0, 2xLAN, Mic-in, Line-out
  • 1xSATA, 1xM.2 SSD NVMe
  • 1x M.2 For WiFi, 1x M.2 for 4G/5G
  • Low Power consumption
Customize IPC-802
IPC-802   + EUR806.00 EUR650.00

* Required Fields

Your Customization
IPC-802
IPC-802

EUR930.00 EUR750.00

Summary
    System
    Processor 11th Gen Intel® Core™ i5-1135G7 processor (4-Core, 2.4 Ghz)
    Chipset
    Storage 1 x M.2 2280 slot (NVMe)
    1 x 2.5” HDD/SDD bay SATA3
    Memory 2x DDR4 260-pin SO-DIMM socket, support up to 64 GB
    I/O Ports
    USB 2.0 4x USB 2.0
    USB 3.0 2x USB 3.2
    Serial -
    Video 4 x HDMI 2.0, 4K Resolution HD Display
    Intel® Iris® Xe Graphics
    Ethernet 2 x GbE Ethernet LAN, RJ-45 (Intel i211)
    Other Ports Audio, Realtek HD
    Operating System
    Operating System Windows 11 Pro, Windows 10 IoT, Linux
    Power
    Source Voltage 12V DC
    230V AC adapter
    Power Management
    Expansion Slots
    Expansion 1 x M.2 for 4G/5G
    1 x M.2 for WiFi
    1 x SIM card slot


    Operating Temperature
    Operating Temperature 0ºC to 40ºC with normal temp ssd
    -20ºC to 60ºC with wide-temp ssd
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Fanless
    Dimensions / Weight
    Weight (kg) -
    Dimensions 299mm x 200mm x 52.2mm
    Certification
    Certification CE / FCC
    More Information
    CoolingFanless
    CPU FamilyTiger Lake (11th Gen Core i3/i5/7) Mobile
    Operating TempWide Temp -10..50C
