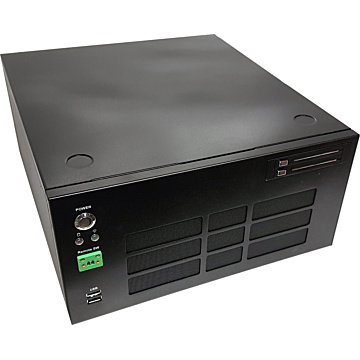

IPC-M550 Teollisuus PC
SKU
IPC-M550
Lead time 14-22 days
EUR1,407.40 EUR1,135.00
Economical & Compact Industrial PC, 8/9th Gen Core-i CPU, 600W Power supply, for EDGE AI/GPU computing
- 8/9th Gen Core-i CPU, i5/i7
- External 2x2.5" HDD/SSD bay
- Two 80mm front fan, with filter
- 600W power supply, support high performance GPU card
- Can install long-length graphic card (315mm)
- Supports Vertical & Horizontal mounting
| System | |
| Processor | LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (up to 65W) |
| Security Hardware | Support TPM2.0 (optional module) |
| Chipset | Intel® Q370 |
| Storage | 2 x 2.5” SATA HDD/SSD Bay (Removable) (Support RAID
0/1) 1 x 3.5” SATA HDD/SSD Bay |
| Memory | 4 x 288-pin DDR4-2666/2400 DIMM, up to 128GB |
| Graphics | Intel® Graphics supports triple independent display 1 x DisplayPort++ 1 x HDMI 2.0 1 x VGA 1 x DVI-D |
| I/O Ports | |
| USB 2.0 | 7 x USB2.0 |
| USB 3.1 | 2 x USB 3.1 Gen2 4 x USB3.1 Gen1 |
| Serial | 2x RS-232/422/485 (pin header) 4x RS-232 (1 rear, 1 pin header) |
| Video | 1 x VGA 1 x DVI-D 1 x HDMI 1 x DisplayPort |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | DIO 8-channel MIC-in/Line-out/Line-In 1 x PS/2 keyboard and mouse |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 slot 4 x PCIe x4 slot 1 x PCIe x1 slot 1 x PCI |
| Operating System | |
| Operating System | Windows® 10, Linux |
| Power | |
| DC Input / Source Voltage | 230V AC, 600W ATX PSU AT mode supported |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +55°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | FAN, Pressurized cabin with air filter 2x 80mm Chassis FAN |
| Dimensions / Weight | |
| Weight (kg) | 7 kg |
| Dimensions | 323 x 360 x 155 mm |
| Enclosure | |
| Bezel | |
| Material | Steel |
| Mounting | Desk / Wall mounting |
| Certification | |
| Certification | CE |
| Cooling | Chassis Fan |
|---|
