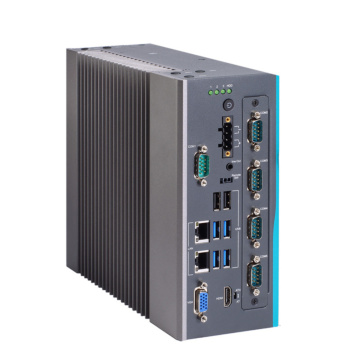

IPC960-525-FL

SKU
IPC960-525-N-DC-FL-Q370
Lead time 21-30 days
  • LGA1151 Socket 9th/8th gen Intel® Core™ processor, up to 65W
  • Supports RAID 0,1 (Intel® Q370)
  • Supports Power-on delay function
  • Supports TPM 2.0
  • Supports AMT 12 (Intel® Q370)
Customize IPC960-525-FL
IPC960-525-N-DC-FL-Q370

* Required Fields

Your Customization
IPC960-525-FL
IPC960-525-FL

EUR0.00

Summary
    System
    Processor 9th/8th gen Intel® Core™ processor, up to 65W
    CPU Performance - Core™ i7-8700/T
    - Core™ i5-8500/T
    - Core™ i3-8100/T
    Security Hardware
    Chipset Intel® Q370
    Storage 2 x 2.5” SATA HDD/SSD Bay
    Storage Support
    Memory 2 x DDR4 SO-DIMM Non-ECC slot, up to 64GB
    Graphics
    I/O Ports
    USB 2.0 2 x USB2.0
    USB 3.0 4x USB 3.1 Gen2
    Serial 1 x RS-232/422/485 (default RS-232)
    Video 1 x HDMI
    1 x VGA
    Ethernet 2 x 10/100/1000 Mbps(Intel® i211-AT & i219-LM)
    Other Ports 1 x Line-out
    1 x Switch for power On/Off (ATX)
    1 x Remote switch
    1 x 4-pin terminal block
    1 x AT/ATX selectable switch
    Expansion
    Expansion Interface 1 x mPCIe slot (USB&pcie signal)
    1 x I/O module slot
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage Power Input Voltage 24VDC
    Operating Temperature
    Operating Temperature -10°C ~ +60°C with W.T. SSD
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 4.0 kg
    Dimensions 83.5 x 192 x 230 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE, FCC certified
    More Information
    CoolingFanless
    CPU FamilyCoffee Lake Refresh (9th Gen Core i3/i5/i7)
    Operating TempNormal Temp 0..70C
