IPC980-H-F1
SKU
IPC980-H-F1
Coming

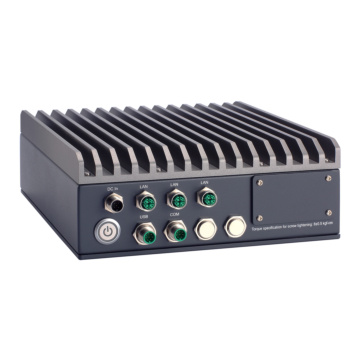

IP67-rated Industrial System with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® Processor, Intel® H610E, and Front-access I/O

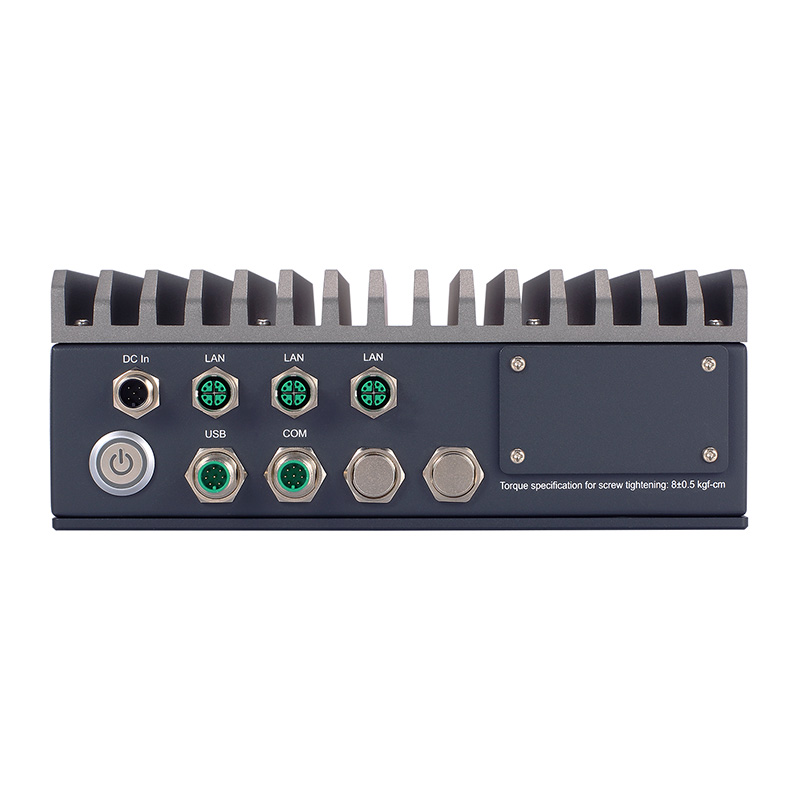

- M12 connectors and IP67 housing

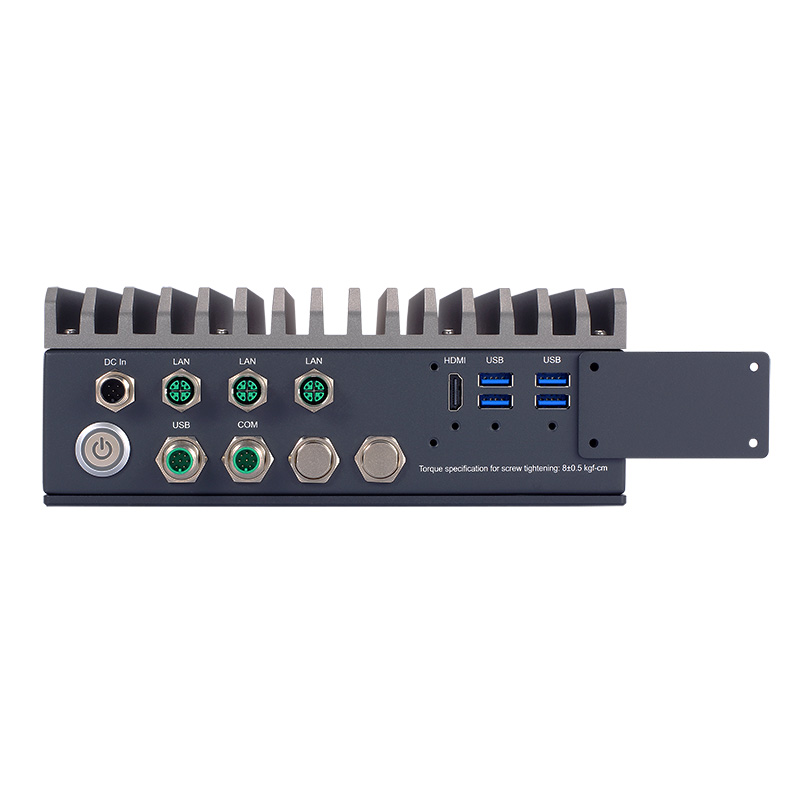

- Optional I/O for expansion
- Intelligent power management: Ignition, and USB power on/off control
- EN 61000-6-2 certified
| System | |
| Processor | 14th/13th/12th gen Intel® Core™ processor, up to 65W |
| CPU Performance | |
| Security Hardware | TPM2.0 |
| Chipset | Intel® H610E |
| Storage | 1 x SSD/HDD drive bay (7/9.5/15 mm height) 1 x SSD/HDD drive bay (optional, 7/9.5/15 mm height) 1 x M.2 Key M 2280 socket (PCIe x4) |
| Memory | 2 x 262-pin DDR5 4800/4000 non-ECC SO-DIMM, up to 96GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 (internal) 2 x USB2.0 (M12 A-coded) |
| USB 3.2 | 4 x USB 3.2 Gen2 (5G) |
| Serial | 1 x RS-232 (4-wire)/RS-422/485 (default: RS-232, M12 A-coded) |
| Video | 1 x HDMI 1.4b with 4096 x 2160 resolution supported |
| Ethernet | 2 x 2.5GbE LAN (Intel® I226-V, M12 X-coded) 1 x GbE LAN (Intel® 1219-LM, M12 X-coded) |
| Other Ports | 1 x Switch for power On/Off (ATX) 1 x Remote switch 1 x 3-pin terminal block 1 x AT/ATX selectable switch |
| Expansion | |
| Expansion Interface | 1 x SSD/HDD drive bay (7/9.5/15 mm height) 1 x SSD/HDD drive bay (optional, 7/9.5/15 mm height) 1 x M.2 Key M 2280 socket (PCIe x4) |
| Operating System | |
| Operating System | Windows® 10, Windows® 11, Linux |
| Power | |
| DC Input / Source Voltage | Input: 18 to 36 VDC ACC ignition 1 x DC power connector (M12, A-coded) 1 x power on/off button with LED (default ATX) AT/ATX mode through BIOS setting |
| Operating Temperature | |
| Operating Temperature | -40°C to +60°C with 14th/13th/12th gen Intel® Core™ processor and industrial wide temperature SSD, 0.7 m/s air flow |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.8 kg |
| Dimensions | 255 x 230 x 86,5 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Shock | IEC 60068-2-27 2008 (with SSD: 50G, half-sine, 11 ms
duration) MIL-STD-810H, Method 516.8, and Procedure I |
| Certification | |
| Certification | CE (EN 61000-6-4/EN 61000-6-2), FCC |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
| Operating Temp | Wide Temp -40..60C |
