IRFD-410

Lead time 8-16 days
SKU
irfd-410
EUR120.28

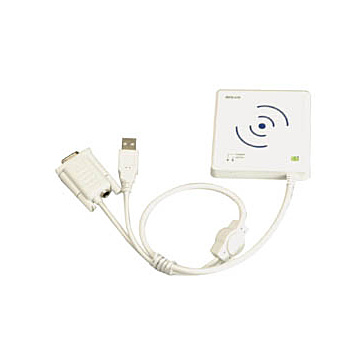

RFID READER AND ANTENNA,HF 13.56MHZ NXP PN532 ,USB/UR
Details
*13.56 MHz radio frequency desktop RFID reading module
*Keyboard event support (USB only)
*Supports standard protocol ISO-14443A Mirfare for vicinity card applications reads multiple tags simultaneously
*Reader to reader anti-collision
*Single power supply and low power consumption
*Various interfaces to main system
*115.2 Kbps maximum serial communication speeds (with adapter)
*USB
Package includes
1 * IRFD-410
1 * Utility CD inculding SDK,utilities,and technical documents
1 * 5VDC 12W power adapter with DC plug in females;100-240VAC input
1 * USB/RS232 Y cable
Specifications
Operating frequency: 13.56 MHz
UART: RS-232
USB: USB 2.0 with 3.3/5V logic levels
RFID Protocol: ISO 14443A/Mifare(R/W)
Control interface: USB/RS-232
RFID ASIC: PN532
Processor: PN532 and AT90USB162
Dimensions: 25mm x 53mm x 7mm
Power consumption: 5V @150mA
Storage temperature: -10℃~ 70℃
Operating temperature: 0℃~ 50℃
Operating humidity: 10%~85% RH
Driver support: Windows XP/XPE
