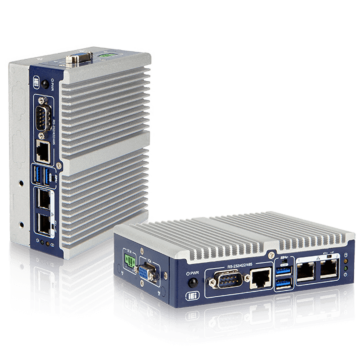

ITG-100-AL
SKU
ITG-100-AL
Lead time 21-30 days
● Intel®Atom™ x5-E3930 1.3GHz (up to 1.8 GHz)
● Two GbE LAN ports
● Two RS-232/422/485
● Full-size PCIe Mini slot and M.2 A-key slot for expansion
| System | |
| Processor | Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x Half-size mSATA (occupied 1 x PCI Express Mini
Card slot) 1 x Internal 2.5" SATA drive (9.5 mm height) |
| Storage Support | |
| Memory | 1x 204-pin DDR3L SO-DIMM slot (system max. 8 GB) |
| Audio | |
| Graphics | |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 2x USB 3.0 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x VGA |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | |
| Expansion | |
| Expansion Interface | 1 x M.2 2230 (A key, PCIe by 1, USB2.0) 1 x Full-size (mSATA) |
| Operating System | |
| Operating System | Windows® 10 / Win7 |
| Power | |
| DC Input / Source Voltage | 12VDC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.1 kg |
| Dimensions | ITG-100-AL-E1/S: 137 x 102.8 x 36.2 (WxDxH) (mm) ITG-100-AL-E1: 137 x 102.8 x 56.2 (WxDxH) (mm) |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | DIN-rail / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Cooling | Fanless |
|---|
