ITRP-3805-SKL2
SKU
ITRP-3805-SKL2
Lead time 21-30 days

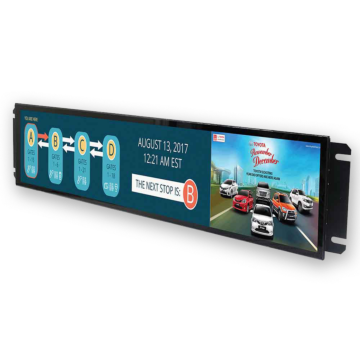

37.6" EN50155 Railway Full IP65 Fanless Panel PC
- Intel® 6th Gen Core i7/i5/i3/Celeron (Skylake-U) processor support
- 37.6" LCD, 1920 x 540, 1000 nits
- EN50155 certificated for railway
- Full IP65 and fanless design
- Support 24/36/48/72/96/110 VDC input with M12 connector
- Anti-Shock and vibration
| Display | |
| Screen Size | 37.6" TFT LCD |
| Screen Resolution | 1920x540 |
| Display Ratio | |
| Contrast Ratio | 8000 ::1 |
| Brightness | 1000 nits |
| Viewing Angle | 178°(H),178°(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | - |
| System | |
| Chipset | Intel® Skylake-U integrated |
| Processor | Intel® Core™ i7-6600U 2.6GHz dual coreprocessor (TDP 15W) Intel® Core™ i5-6300U 2.4GHz dual coreprocessor (TDP 15W) Intel® Core™ i3-6100U 2.3GHz dual coreprocessor (TDP 15W) Intel® Celeron® 3955U 2.0GHz dual coreprocessor (TDP 15W) |
| Memory | 1 x 260-pin DDR4 2133MHz SDRAM; max. up to 16GB |
| Graphic | Intel® HD Graphics 520/510 |
| Expansion Slot | 1 x Mini-PCIe (Full size with SIM) 1 x Mini-PCIe (Full size, share with mSATA) |
| Ethernet | 2 x Gigabit Ethernet (1 x Intel® I210, 1 x Intel®I219LM) |
| I/O | 1 x COM ,1x HMDI, 2 x USB 2.0, 2 x LAN Connector Type: M12 |
| Storage | 1 x mSATA |
| Operating System | |
| Operating System | Win10 , Linux |
| Power | |
| DC Input / Source Voltage | 110 Vdc input, M12 connector (24/36/48/72/96 Vdc optional) |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | EN50155 T1 ; -25°C ~ 55°C |
| Humidity Range | 0% to 90% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 10 kg |
| Dimensions | 1039.6 mm(W) x 67.8 mm(D) x 310.1 mm(H) |
| Enclosure | |
| Bezel | Metal Chassis |
| Material | |
| Mounting | Panel VESA |
| Protection | Full IP65 |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC, EN50155 T1 |
