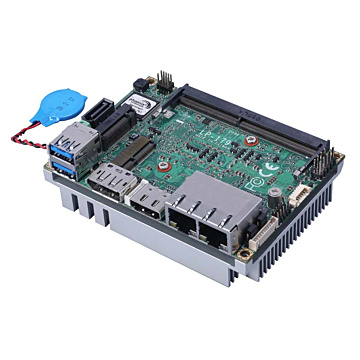

LP-179C

SKU
LP-179C
Lead time 21-30 days

Intel® Tiger Lake UP3 Processor.
HDMI, DisplayPort, Gigabit LAN, USB3.2 Gen2 & USB2.0, HD Audio, M.2 (Key E & M)

  • CPU: Celeron 6305E + Cooler fan, support HDMI, DP
  • Memory: One DDR4 3200 SO-DIMM up to 32GB
  • Integrated Graphics: Intel® Iris® Xe Graphics
  • DisplayPort interface: Onboard DisplayPort connector.
  • HDMI interface: Onboard HDMI connector.
  • LVDS or VGA interface: 11-pin connector (For ADP-3460E or ADP-3355)
  • Serial ATA: Support 1 x SATA3 with 600MB/s (6Gb/s) transfer rate
  • Audio: Realtek ALC262 HD Audio
  • LAN Interface: 1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 15), 1 x Intel® i225-LM Gigabit LAN(up to 2.5GbE).
  • Extended interface: One M.2 (Key E) for Wi-Fi and Bluetooth 2230mm, one M.2 2280(Key M) support PCIe Gen4.
  • Internal I/O: 1 x SATA3, 2 x RS232, 1 x SMBus, 1 x Audio, 2 x USB2.0, 1 x RJ45 LED Connector, 1 x Header for LVDS or VGA (For ADP-3460E or ADP-3355), 1 x DC Out
  • Rear I/O: 2 x RJ45, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DisplayPort
  • Power: DC input 12V ± 5%
Form Factor
Form Factor PICO-ITX


System
Processor Intel® Tiger Lake UP3 Processor, FCBGA1449 package
Integrated Graphics Intel® Iris® Xe Graphics
Security Hardware
Chipset
Storage 1 x SATA3
Storage Support
Memory 1 x 260-pin SO-DIMM DDR4 max 32GB
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0
USB 3.1 2 x USB3.2
Serial 2 x RS-232
Video 1 x HDMI
1 x DisplayPort
Ethernet 2 x 10/100/1000 Mbps
Other Ports 1 Audio
Expansion
Expansion Interface 1 x M.2 (Key E) for Wi-Fi and Bluetooth 2230mm,
1 x M.2 2280(Key M) support PCIe Gen4
Operating System
Operating System WIN10
Power
DC Input / Source Voltage 12V DC Input plug
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 100 x 72 mm
Certification
Certification CE
More Information
Manufacturer / BrandCommell
Form FactorPico-ITX
