LP-17A

SKU
LP-17A7
Lead time 21-30 days

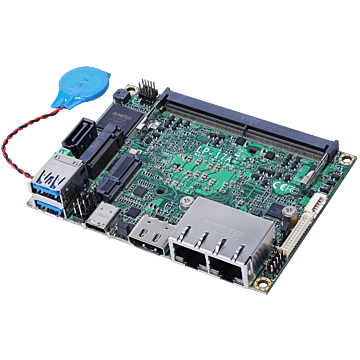

Pico-ITX motherboard with Intel® Alder Lake U Processor, HDMI, Type-C, Gigabit LAN, USB3.2 Gen2 & USB2.0, HD Audio, M.2 (Key E & M)

  • Onboard Intel® Alder Lake U (i7-1265UE) Processor
  • 1 x DDR5 SO-DIMM 4800 MHz up to 32GB
  • Integrated HDMI, Type-C (DP Alt.Mode)
  • 1 x Intel® Gigabit PHY LAN, 1 x Intel® 2.5 Gigabit LAN
  • 1 x M.2 (Key E 2230)
  • 1 x M.2 (Key M 2280) support PCIe Gen4 for NVMe or SATA
  • 1 x SATA3, 2 x USB2.0, 2 x USB3.2 Gen2
  • 1 x RS232/ RS422/ RS485, 1 x GPIO
  • Support Watchdog Timer
  • Support 4K resolution
  • DC input 12V ±5%
Form Factor
Form Factor PICO-ITX

System
Processor

Intel® Alder Lake U Processor, FCBGA1744 package
i7-1265UE

Integrated Graphics Intel® UHD Graphics
Security Hardware
Chipset SoC
Storage 1 x SATA-600
Storage Support
Memory 1 x 262-pin DDR5 4800 SO-DIMM up to 32GB
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0 2 x USB3.2
Serial 1 x RS-232/422/485
Video 1 x HDMI
Ethernet 1 x Intel® i219-LM Gigabit PHY LAN (support Intel® iAMT 16.0)
1 x Intel® i226-LM Gigabit LAN (up to 2.5GbE)
Other Ports 1 x Type-C (DP Alt.Mode)
DIO
Expansion
Expansion Interface 1 x M.2 2230 (Key E) for Wi-Fi and Bluetooth

1 x M.2 2280 (Key M) support PCIe Gen4 for NVMe or SATA
Operating System
Operating System Windows 10
Power
DC Input / Source Voltage 12V DC Input plug
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 100 x 72 mm
Certification
Certification CE
More Information
Manufacturer / BrandCommell
SocketSoC
Form FactorPico-ITX
