LRES3026PF-OCP

SKU
LRES3026PF-OCP
Lead time 21-30 days

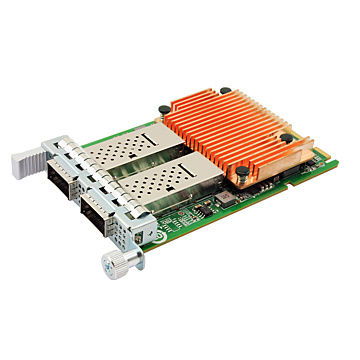

OCP3.0 Dual-port 100G QSFP28 Ethernet Network Adapter (Intel E810)

System
Controller Intel chip (E810)
Connector 2x 100G QSFP28
Fiber type 10GBASE-SR /10GBASE-LR /10GBASE-Cu
1GBASE-SR /1GBASE-LR /1GBASE-Cu
Bus Type OCP3.0 SFF
Data rate 10/25/50/100GbE
Cooling method Passive Heatsink
PoE Power/port
Physical Characteristics
Height SFF
115x76x1.6mm


Protocol Support

IEEE 802.3bj 100GBASE Ethernet
IEEE 802.3x Full Duplex and flow control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3AS IEEE 802.1Q VLAN
IEEE 802.1Qaz IEEE 802.1Qbb
IEEE 802.1x IEEE 802.1bd IEEE1588 v1&v2
iSCSI No
WoL No
Jumbo Frames Yes
DPDK Yes
PXE Yes
FcoE No
Network virtualization SR-IOV, VxLAN, GENEVE, GRE
System Support



Windows Server R2/2019/2022 R2

Linux Stable Kernel version 3.10.x/4.x or later

Ubuntu 16.4 or later


Environmental
Operating Temperature 0 … 55C


Card Slot Interface
OCP OCP3.0 SFF
More Information
ConnectionQSFP28 Fiber slot
Data InterfaceOCP3.0
