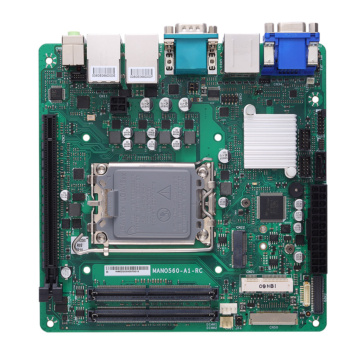

MANO560

SKU
MANO560-H-S-U
Lead time 14-22 days

Mini-ITX SBC with LGA1700 12th Gen Intel® Core™ i9/i7/i5/i3, DisplayPort++, HDMI, VGA, LVDS, USB 3.2, M.2, and Dual GbE LAN

  • LGA1700 12th gen Intel® Core™ i9/i7/i5/i3 processor
  • Intel® H610 chipset
  • 2 DDR4 SO-DIMM for up to 64GB of memory
  • 2 USB 3.2 Gen1 and 5 USB 2.0
  • 4 COM port
  • 1 PCIe x16 and 1 M.2 Key E slot
  • 1 Full-size mini-PCIe slot
  • 1 SATA-600
  • 1 M.2 Key B for USB 3.2 interface 5G module
Form Factor
Form Factor Mini-ITX


System
Processor LGA1700 12th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Security Hardware Onboard TPM2.0
Chipset Intel® H610
Storage 1 x SATA-600
Memory 2 x 266-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
Graphics Intel® integrated Gfx graphic engine
I/O Ports
USB 2.0 5 x USB 2.0
USB 3.0
USB 3.1 2x USB3.2 Gen1
Serial 1 x RS-232/422/485 (with +5V/+12V power)
3 x RS-232
Video 1 x DisplayPort++
1 x HDMI 2.0
1 x LVDS
1 x VGA
Ethernet 1 x 2500/1000/100/10 Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE with Intel® I225-V
1 x 1000/100/10 Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE with Intel® I219-V
Other Ports DIO
Audio MIC-in/Line-in/Line-out
Expansion
Expansion Interface 1 x PCIe x16
1 x M.2 Key B (USB 3.2 Gen1 for 3042/3052 5G module or SATA interface for 2242 SSD)
1 x M.2 Key E 2230
1 x mini-PCIe
Operating System
Operating System Windows10 , Linux
Power
Power Input Standard 12V ATX power
24+4 pin ATX connector
AT mode auto power function supported
Power Requirements
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 170mm x 170mm
Certification
Certification CE
More Information
Manufacturer / BrandAxiomtek
SocketLGA1700
Form FactorMini-ITX
