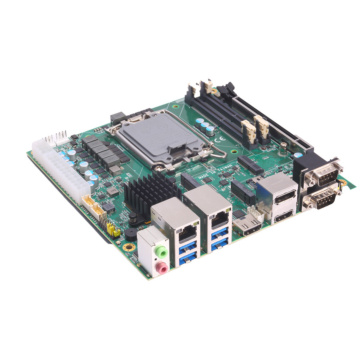

Mini-ITX SBC with LGA1700 Socket 12th Gen Intel® Core™ Processor, Intel® Q670E, 2 HDMI, DisplayPort++, eDP, 2 GbE LAN, and HD Audio

  • LGA1700 socket 12th gen Intel® Core™ i7/i5/i3 processor
  • Intel® Q670E chipset
  • 2 DDR4 SO-DIMM for up to 64GB of memory
  • 4 USB 3.2 and 4 USB 2.0
  • 4 COM ports
  • 2 SATA-600 and 1 M.2 Key M 2280
  • 1 PCIe x16, 1 M.2 Key E 2230, and 1 M.2 Key B 3052/3042
Form Factor
Form Factor Mini-ITX


System
Processor LGA1700 12th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Security Hardware Onboard TPM2.0
Chipset Intel® Q670E
Storage 2 x SATA-600
1 x M.2 Key M 2280 with support of NVMe
Memory 2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
Graphics Intel® integrated Gfx graphic engine
I/O Ports
USB 2.0 4 x USB 2.0
USB 3.0
USB 3.2 4x USB3.2
Serial 4 x RS-232/422/485 (with +5V/+12V power)
Video 1 x DisplayPort++
1 x eDP
2 x HDMI
Ethernet 2 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-LM)
Other Ports 8-channel in/out programmed
MIC-in/Line-out
Expansion
Expansion Interface 1 x PCIe x16
1 x M.2 Key E 2230
1 x M.2 Key B 3052/3042
Operating System
Operating System Windows11, Windows10 , Linux
Power
Power Input 24+4-pin ATX connector
Supports AT Mode Auto Power function
Power Requirements
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 170mm x 170mm
Certification
Certification CE
More Information
Manufacturer / BrandAxiomtek
SocketLGA1700
Form FactorMini-ITX
