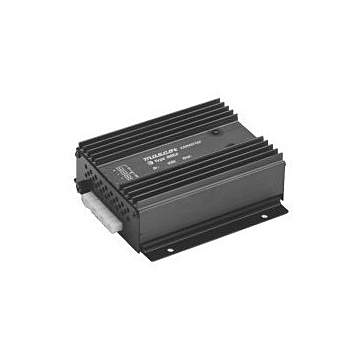

Mascot 8862 24V/12V DC-DC Converter

SKU
Mascot_8862
Lead time 21-30 days
EUR94.00 EUR75.81
81W 24V-12VDC converter. Protected against reversed polarity and overvoltage. Short circuit and thermal protection.
Details
Protected against reversed polarity and overvoltage (transorb diode against transients). Switches off
automatically at input voltages over or under the specified range. Fuse at input.

Thermal protection, short circuit proof and overvoltage protection (output).

Input and output are electrically separated from chassis. Input is electrically separated from output.

6,3 mm push-on terminals (input and output).

Please do not hesitate to contact us with any question or concern you may have and we
would be happy to assist you.
Specifications
* Input voltage: 18-32 VDC
* Output voltage: 13,2 VDC
* Max. output power
- Continuous: 81W
- Intermittent: 132W
* Load current
- Continuous (-20oC - +30oC): 6,0 A
- Intermittent: 10,0 A
- Linearly derating to (at +60oC): 4,0 A
* Load regulation (0-6,0 A load and 24 VDC input voltage): 5%
* Line regulation (20-32 V input voltage and 6 A load): 5%
* Switch frequency approx: 50 kHz
* No load current approx: 90 mA
* Temperature range: -20oC - +30oC
* Ripple (6 A load and 28 V input voltage): 10 mV RMS
* Efficiency (6 A load and 28 V input voltage): 85%
* EMC standards
- Emission: EN 61000-6-3,95/54/EC
- Immunity: EN 61000-6-1,95/54/EC
* Dimensions (LxWxH): 135 x 119 x 46 mm
* Weight: 600g

For more information see datasheet.
More Information
Input Voltage24V DC
Output voltageDC12V
Power90W
ApplicationsIndoor
