MD-3000
SKU
MD-3000
Coming
14/13/12th Generation Intel Core Series Processors, High Performance and Scalable DIN-Rail Computer
- Intel® 14/13/12th Gen Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 Processor
- Scalable Design with Optional Scalable Expansion Deck for I/O Modules Expansion

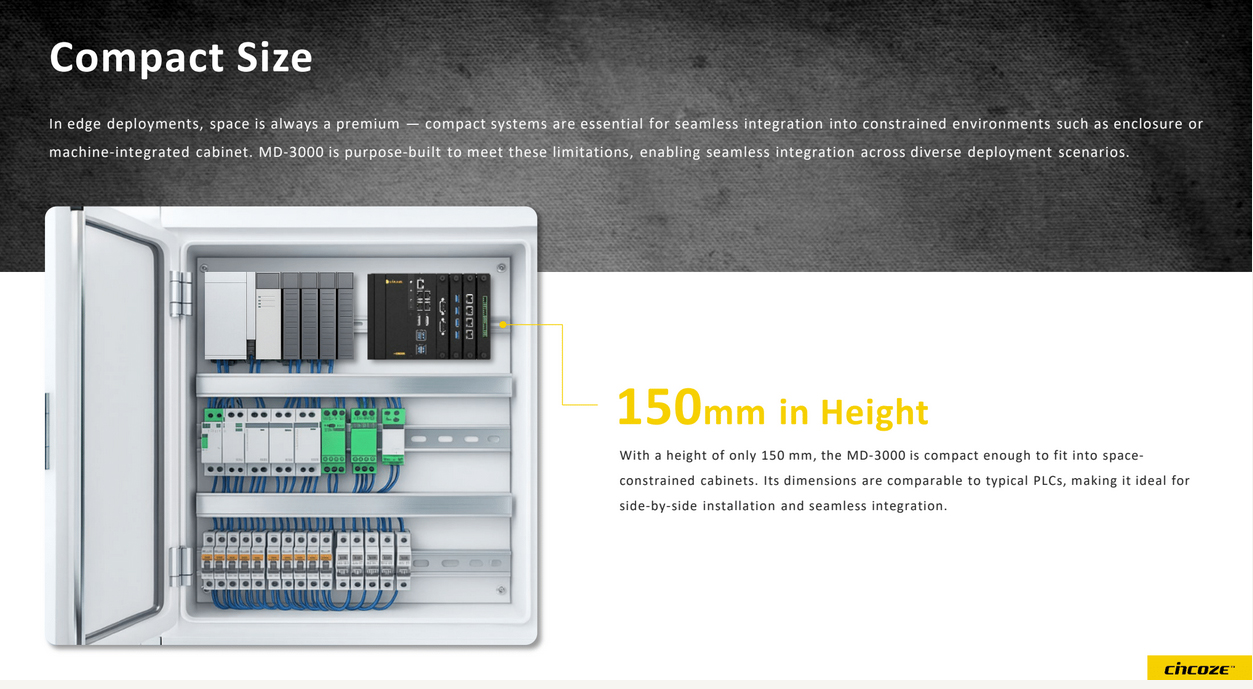

- Compact Size with DIN-Rail Mount Support
- Supports Dual PCIex4 NVMe SSD with RAID Function
| System | |
| Processor | 14th Generation Intel® Raptor Lake-S Refresh Series
CPU 13th Generation Intel® Raptor Lake-S Series CPU 12th Generation Intel® Alder Lake-S Series CPU |
| Security Hardware | |
| Chipset | Intel R680E Chipset |
| Storage | 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4), Support
Storage / Add-on Card Expansion 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA 3.0), Support Storage / Add-on Card Expansion |
| Audio | Realtek® ALC888, High Definition Audio |
| Memory | 2x DDR5 SO-DIMM sockets, support Un-buffered and ECC
Type memory, up to 96GB - Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory. - Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 Mhz. |
| Graphics | Integrated Intel® UHD Graphics
770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron®/Intel® Processor |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.2 Gen1x1 (5Gbps), Type A |
| Serial | 1x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| Video | 2x DisplayPort Connector: 4096 x 2304 @ 60Hz * Verified maximum DP resolution: 3840x2160 @ 60Hz |
| Ethernet | 5x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2~5: Intel® I210 |
| Other Ports | |
| Expansion | |
| Expansion Interface | 1x PCIex16 interface for Optional Scalable Expansion Deck |
| Operating System | |
| Operating System | Windows® 10, Windows® 11, Linux |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Reliability & Protection | Reverse Power Input Protection Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover Over Current Protection : 15A |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.1 kg |
| Dimensions | 135.5 x 132 x 152.2 mm |
| Enclosure | |
| Material | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall / DIN-RAIL |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Environment | |
| Certification | CE, UKCA, FCC, ICES-003 Class A EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only) EN 50155 (EN 50121-3-2 Only) E-mark (Pending) |
| Operating Temperature | 35W TDP Processor: -40°C to 65°C (-40℉ to 149℉) 45W TDP Processor: -40°C to 55°C (-40℉ to 131℉) 65W TDP Processor: -40°C to 45°C (-40℉ to 113℉) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With external fan, extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Shock | Operating, 30 Grms, Half-sine 11 ms Duration (w/ External Fan & SSD, according to IEC60068-2-27) |
| Vibration | Random Vibration: Operating, 3 Grms, 5-500 Hz, 3 Axes
(w/SSD, according to IEC60068-2-64) Sinusoidal Vibration: Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ External Fan & SSD, according to IEC60068-2-6) |
| Relative Humidity | 95% @ 65C |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI | CISPR 32 Conducted & Radiated: Class A EN/BS EN 55032 Conducted & Radiated: Class A EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A EN/BS EN61000-3-3 Voltage fluctuations & flicker FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
| EMS | EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV EN/IEC 61000-4-6 CS: 10V EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz |
| Industrial Environment | EMC - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 |
| Manufacturer / Brand | Cincoze |
|---|---|
| Cooling | Chassis Fan |
