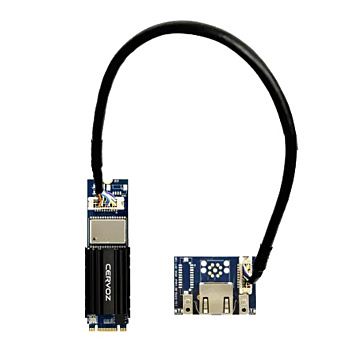

M.2 2280 (B+M key) 1 port 10GbE isolated Ethernet board
SKU
MEC-LAN-2101i
Lead time 14-22 days
Industrial M.2 PCIe Ethernet Expansion Card_2101i
- Dual-Lane (x2) PCI-Express with throughput up to 16GT/s
- Fully compliant with PCI-Express Base Specification Rev.4.0
- Integrated 100M/ 1000M/ 2.5G/ 5G/ 10Gbps transceiver
- Complies with EN61000
- Compliant with IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz and IEEE 802.3an
- IEEE 802.3x & IEEE 802.3z flow control
- Support single isolated 10GbE LAN port
- Lowest power consumption 10GbE expansion solution
| System | |
| Controller |
Intel E610-XAT x1
|
| Form Factor | M.2 B+M Key |
| Interface | 1x RJ-45 (isolated) |
| Bus |
Ethernet 100M/1000M/2.5G/5G/10Gbps x 1 (RJ45)
|
| Physical Characteristics | |
| Dimension | 22x80mm |
| Operating Temperature | 0..70C |
| Driver Support | Win10, Win11, Linux |
| Manufacturer / Brand | Cervoz |
|---|
