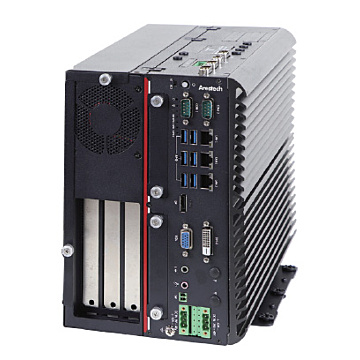

MEGA-3113
SKU
MEGA-3113
In Stock
- Supports 8th / 9th Intel® Core™-i LGA 1151 Processors
- Triple Display Supported by VGA, DVI and Display Port
- Dual DDR4 2400 MHz SO-DIMM up to 32 GB
- 3 x Intel GbE Ports, Support Wake-on-LAN and PXE
- 2 x Removable 2.5“ SATA HDD Bays and
2 x Internal 2.5” SATA HDD Bays
Supporting RAID 0, 1, 5, 10 - -40 ~ 70°C Operating Temperature
- 2 x CFast / mSATA Sockets
- 1x PCIEx16 , 2xPCIEx8 (4-lane)
Special feature
MEGA-3113 can use high performance Graphics Card (2080ti, RTX-3090, etc) in a compact system.
Applications
- Edge Computing
- Traffic Vision
- Intelligent Control
- Deep Learning
- Artificial Intelligence
- Voice Recognition
| System | |
| Processor | Support 8th/ 9th Intel® Core™ i3 / i5 / i7 Desktop35W/65W LGA 1151 Processors |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® Q370 Express Chipset |
| Storage | 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD Support RAID 0/1/5/10 |
| Storage Support | |
| Memory | • 2x DDR4 SO-DIMM Socket, Support Up to 32GB |
| Graphics | Integrated Intel® UHD Graphics 630 |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.2 | 6x USB 3.2 |
| Serial | 6 x COM (RS-232/422/485), with Auto Flow Control, DB9 |
| Video | 1 x DVI-D 1 x DisplayPort 1 x VGA |
| Ethernet | 3x GbE LAN , RJ-45 |
| Other Ports | Mic-in/Line-out 8x Isolated DIO |
| Expansion | |
| Expansion Interface | 1x PCIe X16 slot 2x PCIe X 8 slot (4-Lane) 2x Full-size Mini-PCIe Sockets 2x SIM Socket |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 1. Power Input Voltage 9~48VDC 2. Power Input Voltage 9~24VDC |
| Power Consumption | With 2080Ti Graphics card 21A @ 24V (500W) With 3090 Graphics card 42A @ 24V (1008W) |
| Protection | Over Voltage Protection (OVP) Up to 52V Reverse Voltage Protection (RVP) up to -48V Over Current Protection (OCP) 20A |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, without GPU Card -40°C ~ +60°C with W.T. SSD, with GPU Card |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Combination , with FAN |
| Dimensions / Weight | |
| Weight (kg) | 7.5 kg |
| Dimensions | 168 x 241.5 x 356 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE/FCC |
| Cooling | Chassis Fan |
|---|
