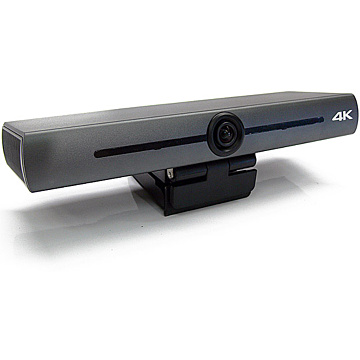

Minrray 4K Video conference camera MG200
SKU
mg200
In Stock
4K, 90 degree wide angle, HDMI, USB3.0, LAN with POE. Metal casing. Indoors. DC12V. Does not require encoder software for Live-streaming, direct stream to Youtube!
Details
*Perfect video quality with 1/2.5" CMOS image sensor.
*Support max 4K (3840x2160) video at 30fps.
*Wide view angle 90 degrees.
*Automatic focus.
*Multiple video outputs: HDMI, USB3.0 and LAN.
*Support H.265/H.264/MJPEG video.
*POE: LAN-port supports Power Over Ethernet.
*Camera stand with 1/4" camera screw thread.
*Easy install to LCD-monitors.
*No drivers needed, plug&play.
*No encoder software required for live-streaming.
*Supports RTSP, RTMP, ONVIF, GB/T28181 video-network protocols.
*Support max 4K (3840x2160) video at 30fps.
*Wide view angle 90 degrees.
*Automatic focus.
*Multiple video outputs: HDMI, USB3.0 and LAN.
*Support H.265/H.264/MJPEG video.
*POE: LAN-port supports Power Over Ethernet.
*Camera stand with 1/4" camera screw thread.
*Easy install to LCD-monitors.
*No drivers needed, plug&play.
*No encoder software required for live-streaming.
*Supports RTSP, RTMP, ONVIF, GB/T28181 video-network protocols.
Package includes
1x Minrray 4K Video conference camera MG200
1x Power adapter AC230V/DC12V
1x IR Remote controller
1x USB-cable
1x Power adapter AC230V/DC12V
1x IR Remote controller
1x USB-cable
Specifications
| Model Number | MG200-AM |
| Camera Parameter | |
| Image Sensor | 1/2.5 Inch High Quality 4K CMOS Sensor |
| Effective Pixels | 8.28MP 16:9 |
| View Angle | 93.5° /83°/53.1° |
| Video Format | HDMI interface: 4K@30fps/25fps; 1080@P30fps/25fps; 1080I@60fps/50fps; 720P@60fps/50fps. USB interface: 3840×2160@30fps; 1920×1080P@30fps/25fps; 1280×720P@30fps/25fps and multiple formats. LAN interface: 3840×2160@30fps; 1920×1080P@30fps/25fps; 1280×720P@30fps/25fps and multiple formats. |
| Minimum Illumination | 0.5Lux(F1.8, AGC ON) |
| Lens | 3.5mm |
| Aperture | 2.0+ 5% |
| Digital zoom | 3X |
| DNR | 2D﹠3D DNR |
| White Balance | Auto / Manual/ One Push//3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto / Manual/ One Push（AM model support） |
| Exposure | Auto / Manual |
| Backlight contrast | On/off |
| SNR | >55dB |
| USB Feature | |
| Operation Systems | Windows 7, Windows8, Windows10, Mac osx, Linux,etc |
| Video Compression format | MJPG/H264/YUY2 |
| USB Audio | Support |
| USB communication protocol | UVC, UAC |
| PTZ control | Support EPTZ |
| Input/Output interface | |
| Video output interfaces | 1 Channel HDMI 1 Channel USB, Type A 1 Channel LAN: 10M/100M/1000M adaptive Ethernet Port, support audio output |
| Video Compression format | MJPG, H.264, H.265 |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181 |
| Control Port | LAN, USB interface |
| Control Protocol | VISCA / Pelco-D / Pelco-P |
| Power Supply | HEC3800 Outlet (DC12V) |
| Other Parameters | |
| Input Voltage | Power Adapter: 12V |
| USB power supply: 5V | |
| POE power supply: 48V | |
| Input Current | Power Adapter: 0.42A (max) |
| USB power supply: 1A (max) | |
| POE power supply: 0.104A (max) | |
| Power consumption | 5W(Max.) |
| Working Temperature | -10℃～+50℃ |
| Working Humidity | 20%～80% |
| Dimension（WXHXD） | 222mm×93.25mm×56.5mm |
| Weight | Around 0.53kg |
| Application | Indoor |
