MIC-710AI

SKU
MIC-710AI
Lead time 21-30 days

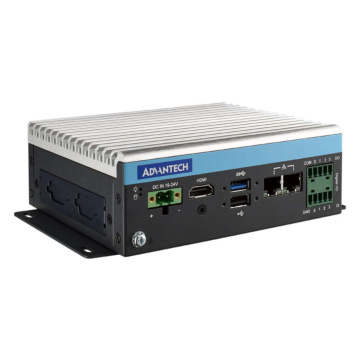

AI Inference System Based on NVIDIA® Jetson Nano™

  • Fanless compact design
  • Embedded with NVIDIA® Jetson™ NANO up to 472 GOPS
  • Supports 2 x GbE, 1 x USB 3.0 , 1 x USB 2.0
  • Supports 1 x mPCIe, 1 x M.2 2280 (SATA interface)
  • Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices
  • Fanless and compact design
  • NVIDIA Jetson® NANO embedded
  • 2 x LAN port embedded
  • Linux OS with BSP (board support package)
  • Supports deep learning trained models
  • Wide-operating temperature range



System
Processor Quad Core ARM Cortex A57 (Max. Operating Frequency: 1.43GHz)
GPU / Graphics Maxwell GPU, 128 CUDA core, Performance up to 512 GFLOPS
Security Hardware
Chipset SoC
Storage 16G of eMMC
1 x M.2 2280 (M Key)
1 x Micro SD (Support for SD 4.0 Specification without UHS-II)

Memory 4GB LPDDR4
I/O Ports
USB 2.0 1 x USB2.0
1 x USB2.0 (internal)
USB 3.0 1x USB 3.0
Serial 1 x RS-232/RS-422/RS-485
Video 1 x HDMI
Ethernet 2 x 10/100/1000 Mbps (Intel® i211)
Other Ports DIO, 4x input, 4x output
Expansion
Expansion Interface 1 x mPCiE, iDoor
Operating System
Operating System Linux (Ubuntu 18.04 with JetPack)
Power
DC Input / Source Voltage 19-24V DC
Operating Temperature
Operating Temperature -10°C ~ +60°C
Humidity Range 10% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 1.2 kg
Dimensions 147 x 118 x 52 mm
Enclosure
Bezel
Material Aluminum , metal
Mounting Desk / Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE/FCC/BSMI
More Information
CoolingFanless
