MIC-730AI
SKU
MIC-730AI
Lead time 21-30 days

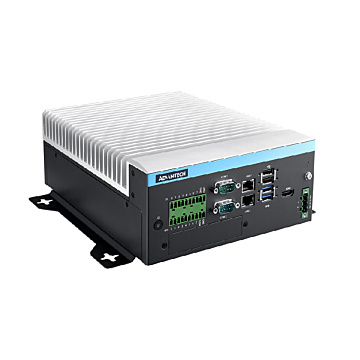

AI System Based on NVIDIA Jetson® AGX Xavier
- Fanless compact design
- Embedded with NVIDIA® Jetson™ AGX Xavier up to 32 TOPS
- Supports 2 x GbE, 2 x USB 3.0, 2 x USB 2.0, 2 x RS-232/422/485
- Supports 1 x mPCIe, 1 x M.2 2280 (PCIe x2 NVMe), PCIe Add-on Card
- Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices
- NVIDIA Jetson™ Xavier embedded
- Fanless compact design
- Support 1 x MiniPCIe & 1 x M.2 (PCIex4 NVMe)
- Bundles with Linux Ubuntu 18.04
- Low power consumption
- Support PCIe Add-on Card
- Support 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon (support JetPack 4.4GA and above)
| System | |
| Processor | 8-core ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3 |
| GPU / Graphics | NVIDIA Volta™ architecture with 512 NVIDIA CUDA cores and 64 Tensor cores |
| Security Hardware | |
| Chipset | SoC |
| Storage | 32GB eMMC 5.1 2.5" HDD/SSD (Max. 9.5mm) M.2 (NVMe 2280) |
| Memory | 16GB 256-bit LPDDR4x 2133MHz - 137GB/s |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 1 x USB2.0 (internal) |
| USB 3.0 | 2x USB 3.0 |
| Serial | 2 x RS-232/RS-422/RS-485 |
| Video | 1 x HDMI |
| Ethernet | 2 x 10/100/1000 Mbps |
| Other Ports | DIO, 8x input, 8x output |
| Expansion | |
| Expansion Interface | 1 x mPCiE |
| Operating System | |
| Operating System | Linux (Ubuntu 18.04 ) |
| Power | |
| DC Input / Source Voltage | 9-36V DC |
| Operating Temperature | |
| Operating Temperature | -10°C ~ +55°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.5 kg |
| Dimensions | 192 x 230 x 87 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum , metal |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE/FCC/BSMI |
| Cooling | Fanless |
|---|
