MIT-W101

SKU
MIT-W101-Q04DNB00E
Lead time 14-22 days

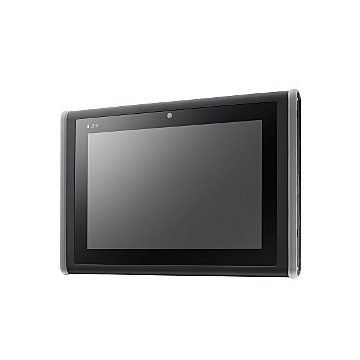

10" Industrial Tablet PC, N2930/ 4GDDR/ 64GSSD/ WiFi/ BT/ NFC/ Black/ WES8
Details
* Intel Celeron N2930 Quad Core processor
* 10.1” WXGA, Projective Capacitive Multi Touch Display
* Seamless Communications, Including Wi-Fi, BT, NFC
* Compact/Slim Design: 20mm/ 0.79inch height
* -10°C to 50°C (14°F to 122°F), IP65, MIL-STD 810G / 4ft drop compliant
Specifications
Display
10.1" TFT LED Panel with projected capacitive touchscreen

Resolution: 1280 x 800

Processor Core Logic System

CPU:
1.86Ghz Intel Celeron, N2930, Quad Core

System Memory:
4GB DDR3L

Communication
WLAN
Bluetooth
NFC

Connectivity
1x Combo Audio
1x USB 3.0
1x USB 2.0
1x Micro HDMI
1x DC Jack
1x Expansion Port
1x Docking Port

Camera/Scanner
2.0M Fixed Focus Camera At Front
5.0M Auto Focus Camera With LED Flash At Rear
2D Barcode Scanner (Optional)

Storage
60GB SSD, (mSATA)

Mechanical
IP65 enclosure
Diameter: 292 x 196 x 20 mm
Weight: 5.3 kg

Power Supply
240V AC Adapter

Battery Capacity:
Main Battery: 31.7 Whrs (11.1V 2860mAh)
Extended Battery: 49 Whrs (11.1V 4540mAh) (Optional)


Software Support
Win7 / WIN8

Environment
Operating Temperature -10°C to 50°C

Vibration:
Operation: (5-500GHz) 1G (refer to IEC 60068-2-64)
Non-operating: (5-500GHz) 4.4mm – 2G (refer to : IEC60068-2-6)

Shock:
Operating: 20 G, 11 ms (refer to : IEC 60068-2-27)

Handling Drop:
4ft drop onto steel plate, 4ft drop onto 2inch plywood over concrete (MIL-STD 810G compliant)
6ft drop with add-on bumper

Safety: CE
