NA593
SKU
NA593
Lead time 21-30 days

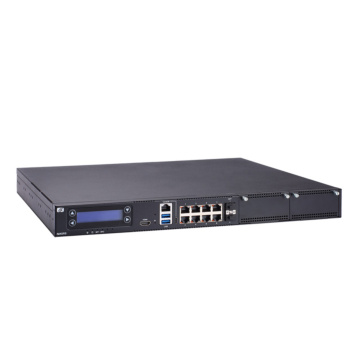

1U 19" Rackmount Network Appliance with 14th/13th/12th Gen Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, and up to 26 LAN
- 14th/13th/12th Gen Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
- 4 DDR5-4400 MHz ECC (By CPU) or non-ECC UDIMM, up to 256GB
- 8 GbE RJ-45, 2 SFP (Intel® I350), and 2 NIC modules (optional)
- 1 PCIe x8 FH/HL (optional), 1 x M.2 Key M, 1 x M.2 Key B, and 1 x PCIe Mini Card slot
| System | |
| Processor | 14th/13th/12th gen Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Codenamed Alder Lake S/Raptor Lake S/Raptor Lake Refresh) |
| Security Hardware | Onboard TPM 2.0 |
| Chipset | Intel® R680E |
| Storage | 2 x 2.5" SATA HDD/SSD bays |
| Memory | 4 x DDR5-4400 MHz ECC/non-ECC UDIMM, up to 256 GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 2x USB 3.0 |
| Serial | |
| Video | 1 x HDMI |
| Ethernet | 8 x GbE RJ-45 2 x SFP 2 x NIC module through MIO153 I/O board (optional) |
| Other Ports | 6 LEDs for power, storage, GPIO, and LAN bypass 1 x console (RJ-45/Type C) |
| Expansion | |
| Expansion Interface | 2 x Full-size Rev. 1.2 PCI Express Mini Card slot: 1 x USB/PCIe with SIM socket 1 x mSATA/USB/PCIe |
| Operating System | |
| Operating System | LINUX |
| Power | |
| Source Voltage | 230W AC Power input 400W single power supply 400W 1U redundant power supply |
| Operating Temperature | |
| Operating Temperature | 0°C to +45°C |
| Humidity Range | 0% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 6 kg/9.5 kg (single power) 7.3 kg/10.8 kg (redundant power) |
| Dimensions | 44 x 430 x 450 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Rack |
| Certification | |
| Certification | CE, FCC |
| Manufacturer / Brand | Axiomtek |
|---|
