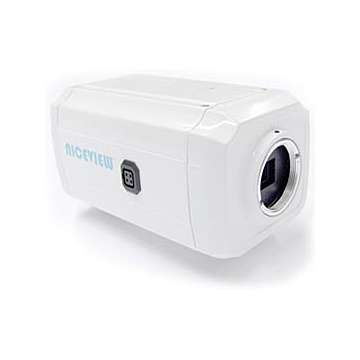

Niceview Security Camera NiceCAM690WDR
SKU
nicecam690wdr
Not available
EUR150.00 EUR120.97
600 TV lines Sony 1/3" CCD image sensor with Wide Dynamic Range. Day and night function. C/CS lens mounting. Video/DC-Iris. Dual voltge DC12/AC24V. Minimum illumination 0.01Lux. OSD-menu.
Details
Wide Dynamic Range (WDR) camera.
*High resolution 600 TV-lines Sony 1/3" CCD WDR image sensor.
*WDR function helps in direct sun light situations.
*Automatic White Balance and Backlight Control.
*OSD-menu for settings.
*BNC-video output (75ohm PAL/NTSC).
*C/CS lens mount.
*DC/Auto Iris support.
*Operation voltage DC12V/250mA.
*Dimensions 118x64x64mm.
*Weight about 350g.
*High resolution 600 TV-lines Sony 1/3" CCD WDR image sensor.
*WDR function helps in direct sun light situations.
*Automatic White Balance and Backlight Control.
*OSD-menu for settings.
*BNC-video output (75ohm PAL/NTSC).
*C/CS lens mount.
*DC/Auto Iris support.
*Operation voltage DC12V/250mA.
*Dimensions 118x64x64mm.
*Weight about 350g.
Package includes
1x Niceview Security Camera NiceCAM690WDR
1x AC power adapter
1x AC power adapter
Specifications
| Malli | NiceCAM690WDR |
| Kuva sensori | Sony 1/3” CCD |
| Horisontaalinen tarkkuus juovina | 600 TV Lines |
| Järjestelmä | PAL |
| Kuva | Color |
| S/N suhde | More than 48dB |
| Minimi valaistus | 0.01 Lux |
| Gamma | 0.45 |
| IR kantama | 0m |
| IR aktivoituminen | No |
| IR-ohjaus | - |
| Video ulostulo | 1Vpp, 75ohm |
| Video liitin | BNC |
| Auto Gain Control | Auto |
| Auto Electronic Shutter (AES) | Auto PAL:1/50s~1/100,000s |
| Jännite / Virta | DC12V / 250mA |
| Linssi | C/CS |
| Katselukulma horisontaalinen | - |
| Katselukulma diagonaalinen | - |
| On Screen Display | No |
| Vesi- ja pölysuojaus | No |
| Mitat | 118x64x64 |
| Paino | 450 |
| Kotelointi | Aluminium/Plastic |
| Toimintalämpötila | -5~ 50 |
