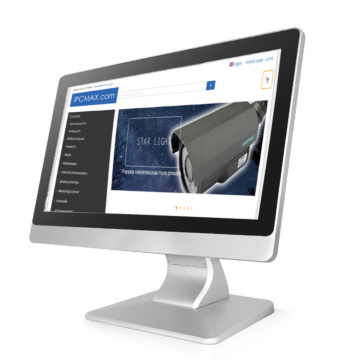

Niceview 21.5" Full-HD Industrial Touchscreen

SKU
tft215fhd
In Stock
EUR644.80 EUR595.20 EUR480.00
  • 21.5" Full-HD capacitive touchscreen for industrial applications.
  • HDMI, DVI and VGA inputs. USB for touch.
  • Aluminium frame. IP65 protected frontpanel.
  • VESA-mounting
  • Brightness 350nits
  • Native resolution 1920x1080. Aspect ratio 16:9.
  • Operating temp -10C - 60C
  • Operating voltage DC12V
  • 21.5" Capacitive touchscreen for professional and industrial applications:
    • Laser cutting machines
    • CNC-machines
    • Machine manufacturing
    • Digital Signage
    • Self-service monitor
    • Point of Sale monitor
    • Etc.
  • This monitor easily replace models like ELO 2202L and 2201L.
  • Front panel smooth and IP65 protected.
  • Multiple inputs HDMI, DVI-D ja VGA.
  • Full-HD native resolution 1920x1080 pixels.
  • Aspect ratio 16:9.
  • Wide 160 degree viewing angles.
  • Brightness 350 nits.
  • LED-backlight.
  • Touchscreen connection with USB (monitor side it is RJ45, USB-RJ45 cable included in package).
  • VESA-standard mounting solutions.
  • OSD-menu for settings, buttons on back panel.
  • Fanless design.
  • Operating temp -10C - +60C.
  • Operating voltage DC12V.
  • Dimensions 521,9 x 338,4 x 62,5mm

Package includes

  • Touchscreen
  • Power adapter
  • USB-RJ45 cable
  • NOTE! Mounting stand purchased separately!

Spesifikaatiot

Screen size 21.5 inch
Resolution 1920*1080
Proportion 16:9 widescreen
Gray-scale response time 5ms
Panel Type Industrial Control A style TFT
Point distance 0.264mm
Contrast 1000:1
Backlight type LED, use length≥50000h
Display color 16.7M
Visual angle 160/160
Brightness 300cd/m2
Touch-type Capacitive (P-CAP)
Number of touches ≥ 50 million times
Power Supply 4A External Power Adapter
Power Performance 100-240V, 50-60HZ
Input voltage DC12V
Anti-static Contact 4KV-air 8KV
Power ≤48W
Anti-vibration GB2423 standard
Anti-interference EMC|EMI anti-electromagnetic interference
Dustproof and waterproof Front panel IP65 dustproof and waterproof
Housing Material Black/Silver, Aluminum Alloy
Installation method Embedded, desktop, wall-mounted, panel mount
Ambient temperature <80%, non-condensable
Working temperature -10°C~60°C (customizable -30°C~80°C)
Signal Interface DVI, HDMI, VGA
Power connector DC with ring attachment
Touch interface USB
Other interfaces Audio input and output
More Information
Display Size21.5"
Touch typeProjected Capasitive (PCAP)
Signal inputVGA, DVI-D, HDMI
