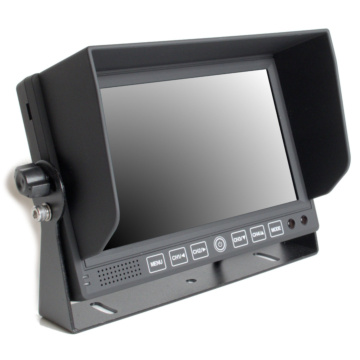

Niceview 7" AHD QUAD Car TFT Monitor

SKU
tft070qahd
In Stock
EUR159.01 EUR128.23
High quality 7" TFT AHD Quad monitor for vehicle use. 1-4 picture split. 4x 4pin-video inputs (AHD1080/AHD720/CVBS). Trigger inputs for each video channel. PAL/NTSC Auto. Touch button control. Sun shade. U-bracket. DC10-30V.

High quality monitor for vehicle and industrial use.

  • 4pcs video-inputs support AHD 1080P, AHD 720P and CVBS video signals.
  • 4pcs trigger-wires, one for each input channel.
  • Image flip horizontal and vertical, mirror and normal.
  • Remote controller.
  • Native resolution 1024x600.
  • Built-in speaker.
  • Sun shade included.
  • U-bracket mounting included.
  • 7" TFT IPS Panel.
  • View angles U/D/L/R 85/85/85/85.
  • Operating voltage DC10-30V, supports DC12 and DC24V systems.
  • Dimensions 178x123x28mm.
  • Operating temp -20C ~ 60C, relative humidity 90%.



  • Connections:
    • 4x Input 4-pin male AHD/analog videosignal
    • 4x Trigger wires for reversing cam
