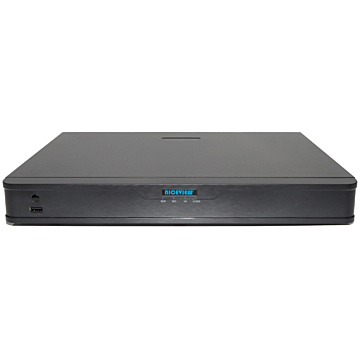

Niceview Verkkotallennin 4K NVR832
SKU
nvr832
In Stock
EUR420.00 EUR338.71
- 32-kanavainen NVR-verkkotallennin.
- Tukee max 32kpl IP-verkkokameraa (ONVIF sekä H.265/H.264 tuettu).
- Max 4K/UHD/8MP (3840x2160) tallennustarkkuus.
- Internet etäkatselu Windows ja Android laitteet.
- 2x Gigabit RJ45/HDMI/VGA/USB/Audio/RS-485.
- Verkkovirtalähde AC/DC12V mukana.
| Video/Audio Input | |
| IP Video Input | 32-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 320Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS |
| Browser | IE(IE10/11) for Windows |
| Firefox (version 52.0 and above) for Windows | |
| Chrome(version 45 and above) for Windows | |
| Edge(version 79 and above) for Windows | |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, |
| 1024x768/60Hz | |
| HDMI: | |
| 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, | |
| 1024x768/60Hz | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Live View Display | 1/4/6/8/9/16/25/36 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080P resolution |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 12MP@30, 2 x 4K@30, 5 x |
| 4MP@30, 10 x 1080P@30, 22 x | |
| 720P@30, 32 x D1 | |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB for each disk |
| (The maximum HDD capacity varies with environment temperature) | |
| eSATA | NA |
| Disk Group | Support |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change |
| Detection, Object Left Behind, Object Removed, Auto Tracking | |
| VCA Search | Behavior Search, Vehicle Search |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), Vehicle Detection by Camera | Total 8-ch |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard |
| Disk Full, Recording/Snapshot Abnormal | |
| External Interface | |
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0 |
| RS232 | NA |
| RS485 | 1 |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| General | |
| Power Supply | 12VDC/3.3A Power Consumption: ≤ 12 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1") |
| Weight | (without HDD)≤1.8Kg (3.97lb) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
