NAVPIXEL NPD2425

SKU
NPD2425
Lead time 21-30 days

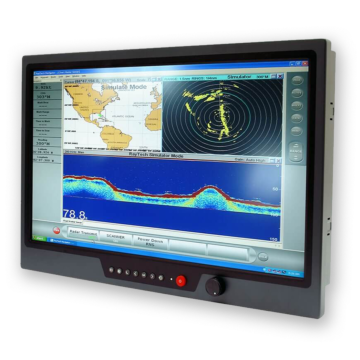

24" IP65 Sunlight Readable PCT Multi-Touch Marine Display

  • 24" sunlight readable, high brightness (1,000 nits) LCD
  • Advanced Optical Bonding (AOT)
  • High shock & vibration resistance
  • Projected capacitive multi-touch support
  • IP65 waterproof (front)
  • Picture-In-Picture, 3 stages (Child, split and wide screen)
  • BV Rule IACES‐E10 certified; IEC 60945 compliant
Display
Screen Size 24" TFT LCD
Screen Resolution 1920x1080
Display Ratio 16 ::9
Contrast Ratio 3600 ::1
Brightness 1000 nits
Viewing Angle 178°(H),178°(V)
Number of Colors 16.7M
Touch Screen
Touchscreen Protective Glass / 5-wire Resistive/PCAP
I/O Ports
Video 2x VGA
2x DVI-D
1x Composite
Other Ports USB &RS232 Touch
Operating System
Operating System
Power
DC Input / Source Voltage 9-36V DC

Multimedia

Operating Temperature
Operating Temperature -10ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 7.8 kg
Dimensions 602 x 423 x 58mm
Enclosure
Bezel Rugged SPCC Chassis
Material
Mounting Panel VESA
Protection IP65 Front
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
More Information
Display Size24"
Touch typeProjected Capasitive (PCAP)
Signal inputVGA, DVI-D, Composite Video (RCA)
