NAVPIXEL NPD2706
SKU
NPD2706-ATA-P01
Lead time 21-30 days

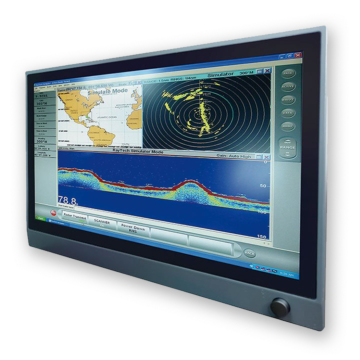

27" IP65 Sunlight Readable PCT Multi-Touch Marine Display
- 1200 nits Sunlight Readable LCD
- Long Life, Low Power Consumption LED Backlight
- Rotary and push knob (OSD MENU)
- Wide Operating Temperature
- Advanced Optical Bonding (AOT)
- High Shock & Vibration Resistance
- Projected Capacitive Multi-Touch Support
- Full Flat Design IP65 Facial Waterproof
- Isolation Power 9-36V DC Input
| Display | |
| Screen Size | 27" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::9 |
| Contrast Ratio | 3600 ::1 |
| Brightness | 1200 nits |
| Viewing Angle | 178°(H),178°(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Protective Glass / 5-wire Resistive/PCAP |
| I/O Ports | |
| Video | 1x VGA 1x DVI-D 1x, HDMI 1x DP 1x Composite |
| Other Ports | USB &RS232 Touch |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 9-36V DC |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 12.5 kg |
| Dimensions | 660 x 445 x 67mm |
| Enclosure | |
| Bezel | Rugged SPCC Chassis |
| Material | |
| Mounting | Panel VESA |
| Protection | IP65 Front |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
| Display Size | 27" |
|---|---|
| Touch type | Projected Capasitive (PCAP) |
| Signal input | VGA, DVI-D, HDMI, Display Port, Composite Video (RCA) |
