NWDisplay42215L-R2

SKU
NWDisplay42215L-R2
Lead time 21-30 days

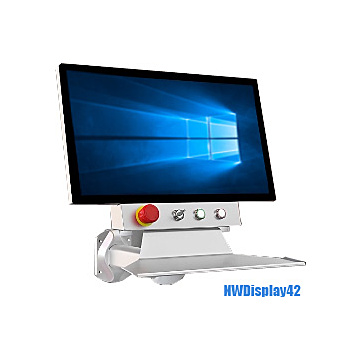

21.5" Industrial Touch Monitor

  • PCAP Touch (Multipoint)
  • Aluminium-magnesium alloy structure
  • Front panel IP65 / Backside >IP20
  • NWLink4 Video signal upto 100Meters via CAT6A cable
  • NWLink4 Transmitter with DVI input
  • DC24V Power input
  • Removable Keyboard Tray
Display
Screen Size 21.5" TFT LCD
Screen Resolution 1920x1080
Display Ratio 16 ::09
Contrast Ratio 3000 ::1
Brightness 250 nits
Viewing Angle 170 L/R/U/D
Number of Colors 16.7M
Touch Screen
Touchscreen Projected Capacitive (Multi-touch)
I/O Ports
Standard configuration
(R0-version)
HDMI
DVI
VGA
USB-Input (touch)
2x USB-Output
9-36V DC input
NW-Link4
(R2-version)

RJ-45 NWLink4 receiver
4x USB-Output
24V DC Input
Operating System
Operating System Windows 10 /Windows11 / LINUX
Power
DC Input / Source Voltage +9V-36VDC
1 x Terminal block (Standard)
  24V DC
1 x Terminal block (NWLink4)
Multimedia
Integrated Speakers -
Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 9.0 kg
Dimensions 518 x 310 x 20 mm
Enclosure
Bezel IP65 Front
Material Aluminum
Mounting ARM
Certification
Certification CE
More Information
Display Size21.5"
Touch typeProjected Capasitive (PCAP)
Signal inputNWLink4
