NWDisplay42215PL-R2
SKU
NWDisplay42215PL-R2
In Stock
991.45EUR 790.00EUR

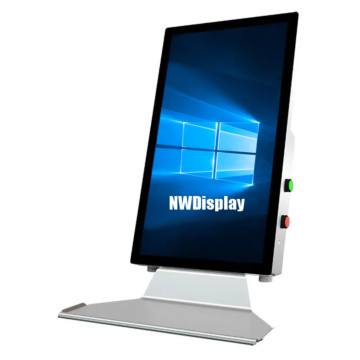

21.5" Industrial Touch Monitor
- PCAP Touch (Multipoint)
- Aluminium-magnesium alloy structure
- Front panel IP65 / Backside >IP20
- NWLink4 Video signal upto 100Meters via CAT6A cable
- NWLink4 Transmitter with DVI input
- DC24V Power input
- Removable Keyboard Tray
| Display | |
| Screen Size | 21.5" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | 3000 ::1 |
| Brightness | 250 nits |
| Viewing Angle | 170 L/R/U/D |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| Standard
configuration (R0-version) |
HDMI |
| DVI | |
| VGA | |
| USB-Input (touch) | |
| 2x USB-Output | |
| 9-36V DC input | |
| NW-Link4 (R2-version) |
|
| RJ-45 NWLink4 receiver | |
| 4x USB-Output | |
| 24V DC Input | |
| Operating System | |
| Operating System | Windows 10 /Windows11 / LINUX |
| Power | |
| DC Input / Source Voltage | +9V-36VDC 1 x Terminal block (Standard) |
| 24V DC 1 x Terminal block (NWLink4) |
|
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 9.0 kg |
| Dimensions | 310 x 518 x 20 mm |
| Enclosure | |
| Bezel | IP65 Front |
| Material | Aluminum |
| Mounting | ARM |
| Certification | |
| Certification | CE |
| Display Size | 21.5" |
|---|---|
| Touch type | Projected Capasitive (PCAP) |
| Signal input | NWLink4 |
