NWPanel-156 Celeron

SKU
NWPanel-156-Celeron
Lead time 21-30 days

EUR880.40 EUR710.00

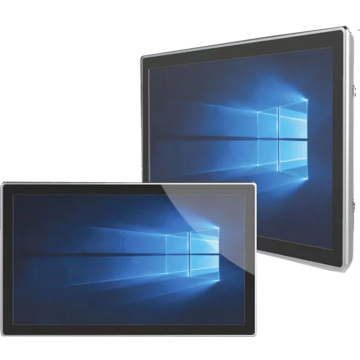

15.6” HD Embedded Industrial Fanless Panel PC

  • Vivid graphics performance & picture quality
  • Front & Back cover aluminium magnesium alloy
  • Front IP65, Backside IP20
  • Multi-point capasitive touch, PCAP
  • High Reliable components for 24/7 usage
  • Versatile mounting options
Customize NWPanel-156 Celeron
NW-Panel156-Celeron   + EUR607.60 EUR490.00
Intel Celeron 3855U   + EUR161.20 EUR130.00

* Required Fields

Your Customization
NWPanel-156 Celeron
NWPanel-156 Celeron

EUR880.40 EUR710.00

Summary
    System
    Processor 7th Gen Intel Celeron 3855U
    CPU Performance
    Security Hardware -
    Chipset SoC
    Storage 1 x 2.5” SATA HDD/SSD
    1 x mSATA
    Memory DDR4-2133, max 16GB
    Display
    Screen Size 15.6" TFT LCD
    Screen Resolution 1366x768
    Display Ratio 16 ::09
    Contrast Ratio
    Brightness 250 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    I/O Ports
    USB 2.0 -
    USB 3.0 4x USB 3.0
    Serial 2x RS-232/422/485
    Video 1 x HDMI
    Ethernet 2 x RJ45 GbE
    Other Ports 1 x Audio Line-out
    1 x Remote power switch
    Operating System
    Operating System Windows 10
    Power
    DC Input / Source Voltage +9V-36VDC
    1 x Terminal block
    Power Management
    Expansion Slots
      1 x Full-size PCI-Express Mini Card slot
    Multimedia
    Integrated Speakers -
    Operating Temperature
    Operating Temperature 0ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 5.5 kg
    Dimensions 396 x 263 x 58 mm
    Enclosure
    Bezel IP65 Front
    Material Aluminum
    Mounting Panel , Wall, Desktop, VESA
    Certification
    Certification CE
    More Information
    CoolingFanless
    Display Size15.6"
    Touch typeProjected Capasitive (PCAP)
    CPU FamilyKaby Lake (7th 8th Gen Core i3/i5i7/Celeron)
